Summary

A DOCX body paragraph in a w:framePr frame hung w:y below its place in the flow (w:vAnchor="text"), with a stated w:w and w:h, was laid out as an ordinary paragraph. It took a line in the flow, pushing the rest of the page down by that line, and was drawn at the flow position. Word draws it in its frame, out of the flow, and lays the text after it beside the frame.

Such a paragraph, alone in its frame, is now lifted into a new IR block, Block::TextFrame. The predicate follows docxide-pdf's Word-probed paragraph_offset_frame (src/pdf/mod.rs at fe7b8bea): text-anchored, a nonzero w:y with no w:yAlign, a stated width and height, and a wrap other than none/notBeside. Every other frame stays in the flow as before, including #2256's empty frames.

• Placement. w:x/w:xAlign resolve against w:hAnchor (page, margin, column) in section resolution. The frame is drawn with a #place that has no vertical alignment, so Typst puts it at the flow position, and it takes no flow space. Typst merges the gaps on both sides of a placed item and lands it below the merged gap. Word hangs the frame from the end of the previous block's after-gap: docxide-pdf's paragraph-offset-frame-exact puts its frame where the immediate case does, although the paragraph after it states a 12pt w:before. So the frame is placed with that gap collapsed above it and added to its offset, and a zero-height block after it lays the gap again, where it still merges with the next block's gap. Frame content is top-aligned, also in a vertically centred section. w:hRule="exact" fixes the height. Any other rule is taken as a least height (FIXME(unprobed height rule)).
• Text beside the frame. The root paragraphs after it wrap with fix(docx): lay text beside a floating table instead of over it #2349's layout-time float wrap. A paragraph whose first line meets the frame is padded off its wider side, using w:hSpace; w:vSpace widens the band. A paragraph whose first line ends above the frame but which would reach it is moved below the frame. Word instead narrows only the lines beside the frame. This is a stopgap: without it, the first-line-only wrap overprinted the frame text in docxide-pdf's immediate-long and in two of the nine real bulk documents below. Per-line narrowing and the both-sides fill are filed as DOCX: a paragraph that reaches a lifted w:framePr text frame starts below it instead of narrowing only the lines beside it #2355. The rule is scoped to text frames, so floating-table output is unchanged.
• Reach. A text frame stays in force in a following continuous section laid out in the same text area. The issue's immediate-long case needs this: its frame ends the first section. An exact frame stops being checked once the paragraphs after it have passed its bottom edge.

Still open in #2231: the both-sides wrap around empty-frame-control's empty frame, frames anchored to the page or margin (including notBeside/none, style-inherited w:framePr and framed tables, such as docxide massachusetts_community_sanitation's letterhead), groups of adjacent identical frames (the empty-margin-frame-* cases), and frames without w:w.

Related issue

Related: #2231. Also #2355 (filed from this work), #2233, #2232, #2229, #2256.

Testing

• cargo test --locked --workspace --profile ci: passes, 4,483 tests.
• cargo clippy --locked --workspace --all-targets -- -D warnings and cargo fmt --all -- --check: clean.
• New tests in crates/office2pdf/src/parser/docx_text_frame_tests.rs. I confirmed that each compiled-layout test fails with its rule disabled and passes with it:
  • The frame is drawn w:y below its anchor and w:x from page/margin/text, at two offsets, and the next paragraph keeps its no-frame position.
  • The frame hangs from the previous paragraph's after-gap, not the next one's before-gap. This holds for three gap pairs, with the next paragraph in the same section and in a following continuous section.
  • The frame's content is top-aligned in a vertically centred section, at two frame heights.
  • Lines meeting a left or right frame lie beside it at the w:hSpace edge, at two heights, and lines below it return to the full column.
  • An exact frame keeps text off its stated height, and an at-least frame off its taller content.
  • A paragraph reaching the frame from above starts below it, while a one-line paragraph above it stays put, at two offsets.
  • The frame excludes text in a following continuous section with the same margins, but not in one with different margins.
  • Parser controls: missing height, width or offset, yAlign, notBeside, none, margin or page anchoring, and a frame shared by two paragraphs all stay in the flow.
  • The issue's case, read from the tracked fixture tests/fixtures/docx/docxide/offset_text_frame.docx: docxide-pdf's unmodified Apache-2.0 paragraph-offset-frame-immediate, SHA-256 4db89768a90c73bec8fc389fe7a354688cb99caa26820226f246d5520faa39d1.
• Corpus scan. I used run-owned base (80aba9ca) and candidate release binaries.
  • All 24 docxide-pdf documents with a body w:framePr (fe7b8bea, Word references): only the three paragraph-offset-frame-* cases change. Positions are mutool draw -F stext baselines:
    • immediate (the evidence below): "Dear recipient" 101.97 → 85.87 (Word 85.78). "About providing information" 85.87 → 102.67 (Word 102.53). Its x stays 71pt right (DOCX: a negative w:ind w:left is clamped to zero, so a paragraph that hangs into the margin starts 71pt right of Word #2233).
    • exact: the frame line 85.87 → 102.67 (Word 102.53). "Dear recipient" 182.36 → 166.26 (Word 146.05); the remaining 20.2pt is the empty section-mark line (DOCX: an empty section-mark paragraph's line is kept or dropped by whether its w:pPr is bare, not by its position in the section #2232).
    • immediate-long: the frame is drawn in place, and the long paragraph now starts at the frame's bottom edge: line 1 at 132.72, where Word has it at 85.78, with lines 2–3 at x 321.13 beside the frame. This is DOCX: a paragraph that reaches a lifted w:framePr text frame starts below it instead of narrowing only the lines beside it #2355; before, the frame took a flow line and lines 2–3 ran at full width.
  • The bulk corpus (fixtures-v1) has nine documents the rule lifts, all LibreOffice bug-tracker files without Word references. I judged them against a LibreOffice 24.2 export, labelled as a non-native reference:
    • Toward the reference: tdf103544 (a negative-w:y frame now at the top right), tdf133702, and tdf154703_framePrWrapSpacing (text wraps left of a right-aligned frame with a 127.6pt w:hSpace; two pages, as in LibreOffice).
    • Mixed: tdf107119: the frame sits mid-column with text on its right only, where LibreOffice fills both sides (DOCX: a paragraph that reaches a lifted w:framePr text frame starts below it instead of narrowing only the lines beside it #2355). tdf133701 and tdf133924: the frame is in place, and the paragraph it hangs into moves below it, where LibreOffice wraps it on both sides (DOCX: a paragraph that reaches a lifted w:framePr text frame starts below it instead of narrowing only the lines beside it #2355). Before, these frames sat at the top in the flow.
    • Unchanged: tdf125894, tdf131420 and tdf154703_framePr.
    • A bordered framed paragraph's border encloses only the paragraph, where LibreOffice draws it around the whole frame. Word is unverified on this.

Visual impact

• No rendered PDF change
• Rendered PDF change or visual evidence added
• Reason: Rendered PDF change; see the visual audit.

Visual audit

• Issue: DOCX: a body w:framePr paragraph is laid out in the flow instead of as a positioned frame that text wraps around #2231
• Fixture: tests/fixtures/docx/docxide/offset_text_frame.docx (docxide-pdf cases/paragraph-offset-frame-immediate/input.docx at fe7b8bea, Apache-2.0); GT is that case's reference.pdf (pdfinfo Creator: Microsoft Word, one A4 page; check_gt_integrity.py --source: no structural corruption)
• Page(s): 1
• Renderer and DPI: pdftoppm, 150 DPI (render-cluster audit at 300 DPI)
• Evidence mode: fix
• Baseline failure report: None
• Layout audit report: assets/bugfixes/issue-2231/layout-audit.json
• Render cluster reports: assets/bugfixes/issue-2231/render-clusters-page-1.json
• Reference exporter differences: None
• Fine-detail threshold: 0.5pt
• Layout audit page count: Pass
• Layout audit text flow: Pass
• Layout audit visible fills: Pass
• Layout audit rectangle geometry: Pass
• Layout audit large shifts: DOCX: a negative w:ind w:left is clamped to zero, so a paragraph that hangs into the margin starts 71pt right of Word #2233
• Layout audit fine shifts: DOCX: a negative w:ind w:left is clamped to zero, so a paragraph that hangs into the margin starts 71pt right of Word #2233
• New follow-up issues found in this audit: None
• Model vision findings: I inspected the full Word, before and after pages, the 5% diff, and every cluster crop at 300 DPI. "Dear recipient" and the framed line are back on Word's lines; the framed line stays 71pt right (DOCX: a negative w:ind w:left is clamped to zero, so a paragraph that hangs into the margin starts 71pt right of Word #2233).

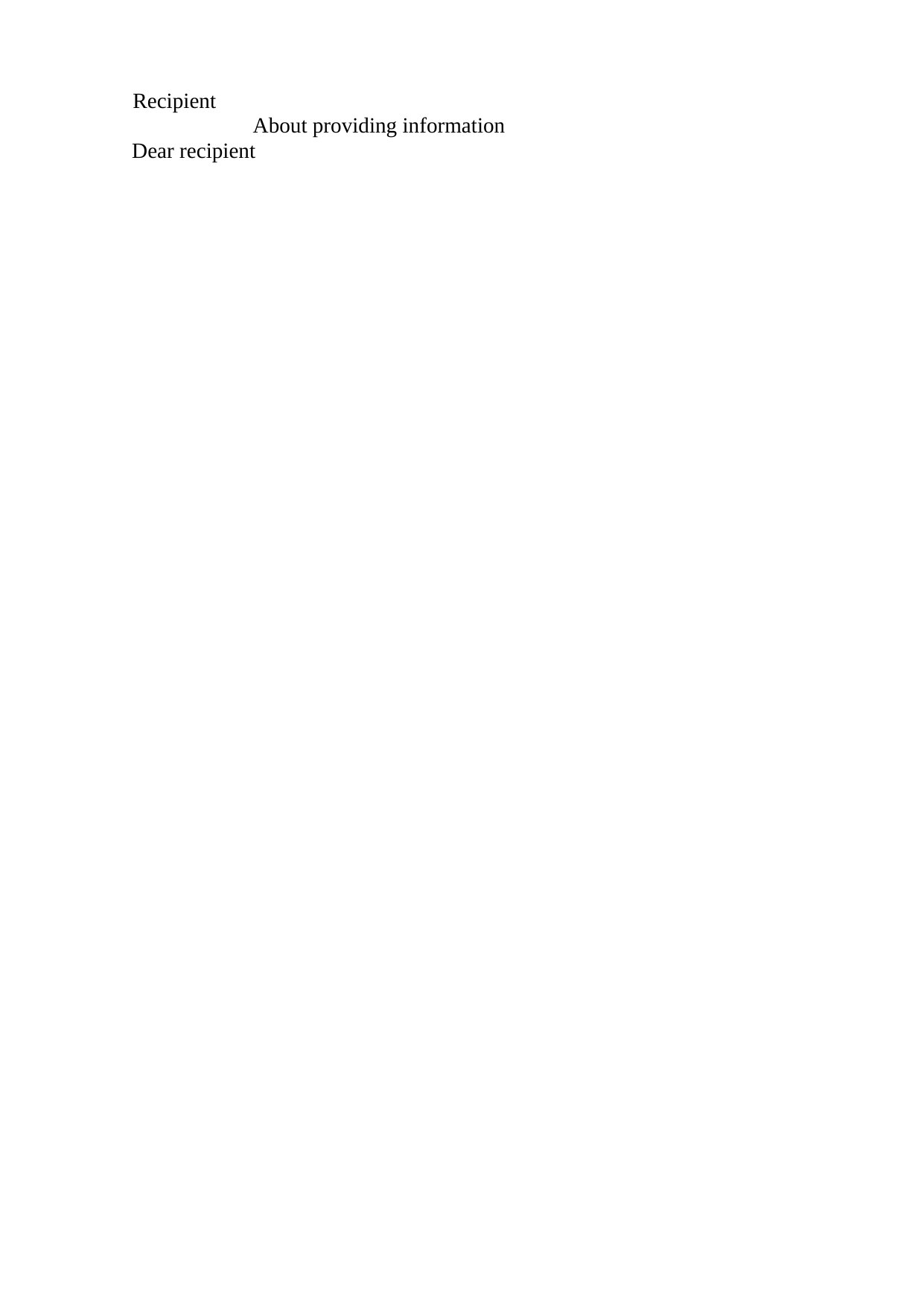

  • Before: the framed paragraph took a line in the flow. "About providing information" was drawn right after the table at baseline 85.87 (x 163.05), and "Dear recipient" was pushed down a line to 101.97.

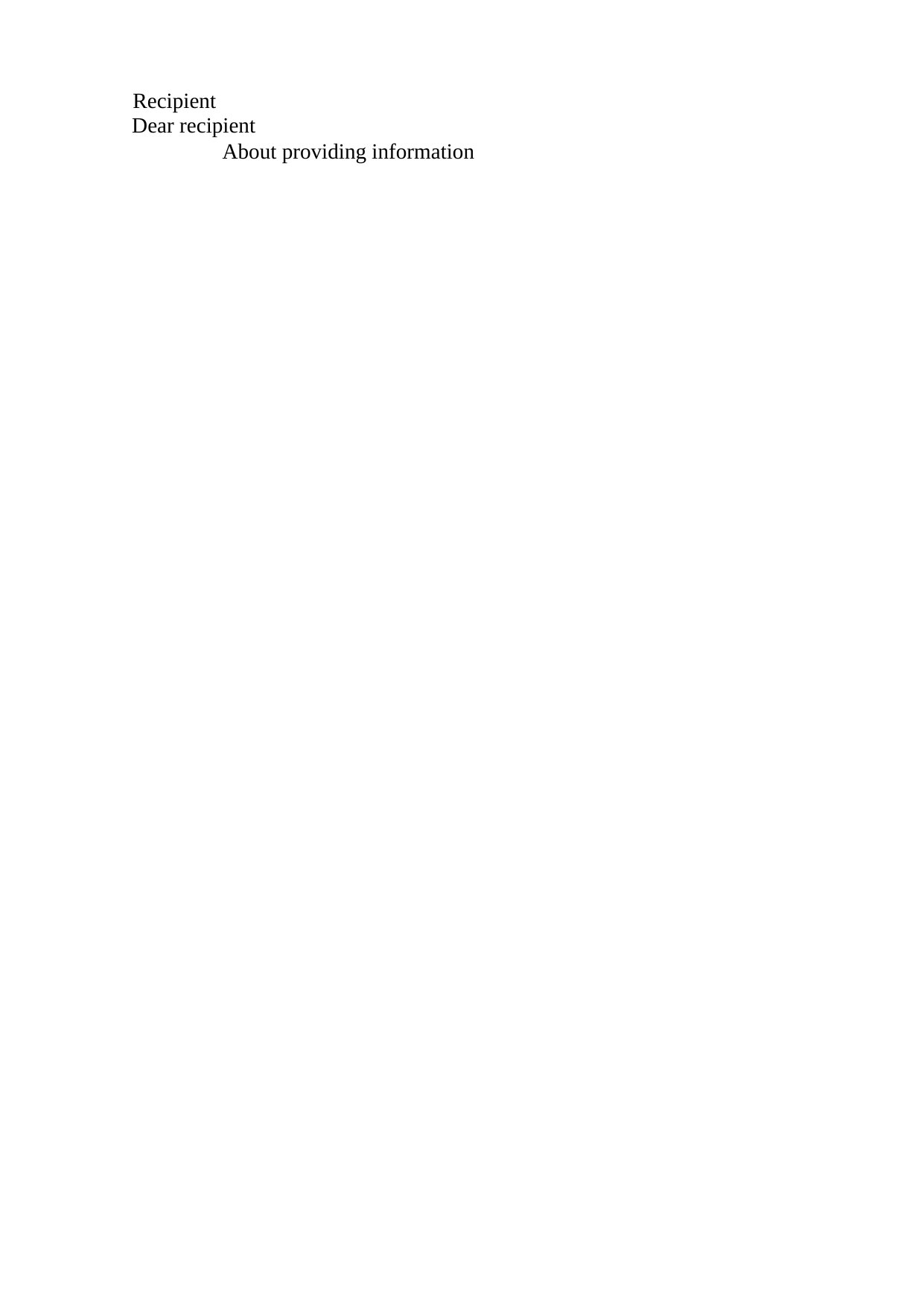

  • After: "Dear recipient" sits on the line after the table (85.87, Word 85.78), and the framed line hangs 16.8pt below it (102.67, Word 102.53), as in Word.
  • The framed line starts at x 143.30, Word 72.28. Word moves it left by its w:ind w:left="-1418" (−70.9pt); here that is clamped to zero (DOCX: a negative w:ind w:left is clamped to zero, so a paragraph that hangs into the margin starts 71pt right of Word #2233). Fourteen of the sixteen diff clusters are this displaced line.
  • The two other clusters lie inside "Dear recipient": the same glyphs at the same place, outlines differing because Word paints Times New Roman and this host its metric-compatible Liberation Serif.
  • All text is regular, black and 14pt. There are no borders, rules, fills, hairlines, dashes, bold, italic or underline.

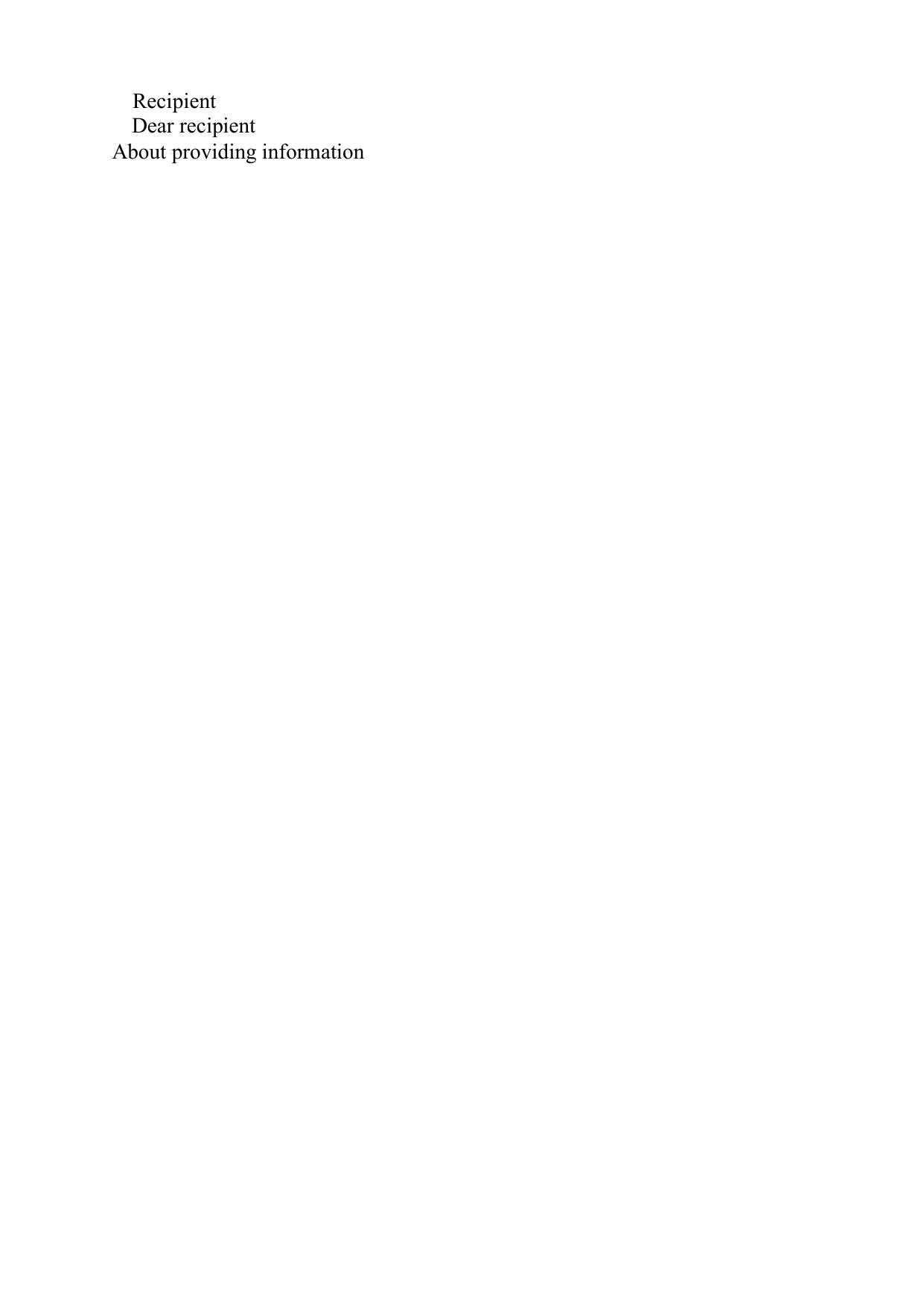

• GT: assets/bugfixes/issue-2231/gt.jpg
• Before: assets/bugfixes/issue-2231/before.jpg
• After: assets/bugfixes/issue-2231/after.jpg
• Native: None
• Compare: None

Visual comparison

GT	Before	After

Required inspection

• Rendered all evidence at 150 DPI or higher
• Stored progressive JPEG quality 86 assets with metadata stripped
• Used Codex/Claude vision to inspect the full GT/output pages, diff, and matched crops
• Inspected matched region crops at full resolution
• Ran compare_layout.py --audit --fine-shift PT and dispositioned every fine/large text-instance shift, rectangle geometry deviation, painted-text visibility mismatch, and visible-fill occlusion
• Ran compare_render.py --cluster-report PATH --strict-clusters and dispositioned every material 5% fuzz diff cluster by explicit ID
• Inventoried hairlines and border dash styles
• Inventoried font weight, italic, and underline emphasis

Deviation audit

Check	Result
Page count/order	Matches GT: one page
Element presence	Matches GT: all three lines present
Position/size	Remaining: #2233 the framed line is on Word's baseline (dy +0.14pt) but 71.03pt right, its negative left indent clamped; the other lines match within 0.09pt
Rotation/flip	No deviation observed
Fill	No deviation observed: white page, no fills
Stroke/border	No deviation observed: no strokes or borders
Shape outline geometry	No deviation observed: no shapes
Text content	Matches GT: normalized text layer identical
Font family/weight/style	Matches GT: Times New Roman via metric-compatible Liberation Serif, regular
Text color	Matches GT: black
Alignment	Remaining: #2233 the framed line starts at the frame's left edge plus its 78pt first-line indent, without its -70.9pt left indent
Line/paragraph spacing	Fixed: "Dear recipient" on the line after the table (85.87, Word 85.78; was 101.97), the framed line 16.8pt below it (102.67, Word 102.53; was 85.87)
Clipping/overflow	No deviation observed

Final performance pass

• Status: Complete
• Measurements: 7 interleaved runs per build. Medians: the reported file 0.27s/40.0 MiB (base) vs 0.27s/42.6 MiB; a real frame document 0.40s/42.1 MiB vs 0.41s/45.3 MiB; the 10-page control 0.45s/48.8 MiB vs 0.45s/51.3 MiB; a 94-page stress document 0.59s/83.3 MiB vs 0.76s/112.4 MiB after the optimization (0.78s/116.4 MiB before it). The full table is below.

  • Setup: /usr/bin/time -f "%e %M". Release CLIs were built with --locked in separate run-owned targets. Each input got 7 runs per build, base and candidate interleaved, with a warm page cache (one discarded warm-up conversion per build). Intel i5-10400 (12 threads), Linux 7.0.0, host fonts: Liberation substitutes, no Microsoft core fonts.

  • Results, median time (min–max) and median peak RSS:

    Input	Base	Candidate before optimization	Candidate
    Reported file offset_text_frame.docx	0.27s (0.26–0.27), 40.0 MiB	0.27s (0.26–0.27), 42.7 MiB	0.27s (0.26–0.28), 42.6 MiB
    docxide paragraph-offset-frame-immediate-long (move-below path)	0.27s (0.26–0.27), 40.0 MiB	0.26s (0.26–0.27), 41.2 MiB	0.27s (0.26–0.27), 42.7 MiB
    Bulk tdf133924 (real frame document)	0.40s (0.40–0.41), 42.1 MiB	0.40s (0.40–0.41), 45.1 MiB	0.41s (0.40–0.42), 45.3 MiB
    Stress: a text frame 100pt down, then 1,500 three-line paragraphs (94 pages)	0.59s (0.58–0.60), 83.3 MiB	0.78s (0.78–0.79), 116.4 MiB	0.76s (0.75–0.78), 112.4 MiB
    Control tests/fixtures/docx/10-pages.docx (no frame)	0.45s (0.45–0.46), 48.8 MiB	0.45s (0.45–0.46), 51.4 MiB	0.45s (0.45–0.47), 51.3 MiB

  • The no-frame control moves by the same 2–3 MiB as the small inputs, which is variance between builds.

  • Scoped measurements, not product SLAs.

• Outcome and revalidation: I kept one small optimization. A text frame stayed in force, as a floating table does, until the wrapped paragraphs had advanced a page. The paragraphs after an exact frame start at its anchor, so a frame is now dropped once they have passed its bottom edge. That cut the stress case from 0.78s/116.4 MiB to 0.76s/112.4 MiB.
  • The rest of the stress cost is Typst re-laying out everything after the first wrapped paragraphs once their layout-time wrap resolves. With the same frame at the document's end, both builds take 0.59s. This is the cost fix(docx): lay text beside a floating table instead of over it #2349 measured for tables, and avoiding it needs a different wrap design, not a simple change.
  • Revalidation after the optimization:
    • The evidence page renders pixel-identical at 150 and 300 DPI, and the committed evidence was regenerated from the final binary.
    • The strict render-cluster audit passes again (16/16).
    • The 24 docxide frame documents, the 9 bulk documents and the stress PDF have unchanged text layers.
    • The full test suite was re-run and passes.

Checklist

• Commits include a Signed-off-by line
• Final memory/speed pass completed after visual acceptance, or no conversion runtime impact is explained
• PR scope contains one root cause
• Remaining converter or harness deviations each reference an open issue
