Venn Diagram Lab

Interactive viewer and editor for Venn diagrams — from 2-set to 9-set, covering all known construction methods. Built with React, TypeScript, and Vite. Ships with three officially published companion packages providing the same 44-model analysis and rendering pipeline headlessly: the Python venn-diagram-lab on PyPI, the R vennDiagramLab on CRAN, and the Node venn-diagram-lab on npm — all byte-equivalent to the web tool's exports.

Headless companion packages (Python, R, Node)

For headless analysis without a browser, three officially-published packages share the web tool's 44 SVG models, statistics, and byte-equivalent TSV exports:

Surface	Install	Status
Python (PyPI)	`pip install venn-diagram-lab`	live
R (CRAN)	`install.packages("vennDiagramLab")`	live
R (Bioconductor)	`BiocManager::install("vennDiagramLab")`	submission pending
Node (npm)	`npm install venn-diagram-lab`	live

See python/README.md, r/README.md, and packages/node/README.md for each package's quickstart, notebook / vignette galleries, and CLI reference. Cross-implementation parity (byte-equivalent TSV exports across web / Python / R / Node) is verified by ~30 fixture-based tests on every release.

The Python vdl CLI contains 5 commands to 30+ commands across 6 subapps (render, export, report, data, model, workflow) plus discovery / about / credits / tree top-level commands. Every dataset-consuming command accepts a --sample flag for one-line demo runs on the bundled cancer-drivers fixture. See python/README.md for the full catalog.

Features

Four Modes

Mode	Description
Summary	Gallery view of all 44 diagrams with SVG previews, grouped by set count, with publication references
View	Interactive diagram viewer with region detection. Four sub-modes: Layer (transparent overlapping shapes), Cut (pre-computed intersection regions), UpSet (UpSet plot), and Network (force-directed relationship graph)
Edit	Full SVG editor with drag-to-position, text editing, undo/redo, validation, and export
Data	Load CSV/TSV/GMT/GMX data, paste gene lists, fetch from URL, map columns to Venn sets (up to 9), auto-calculate on model selection, export as TSV/PDF

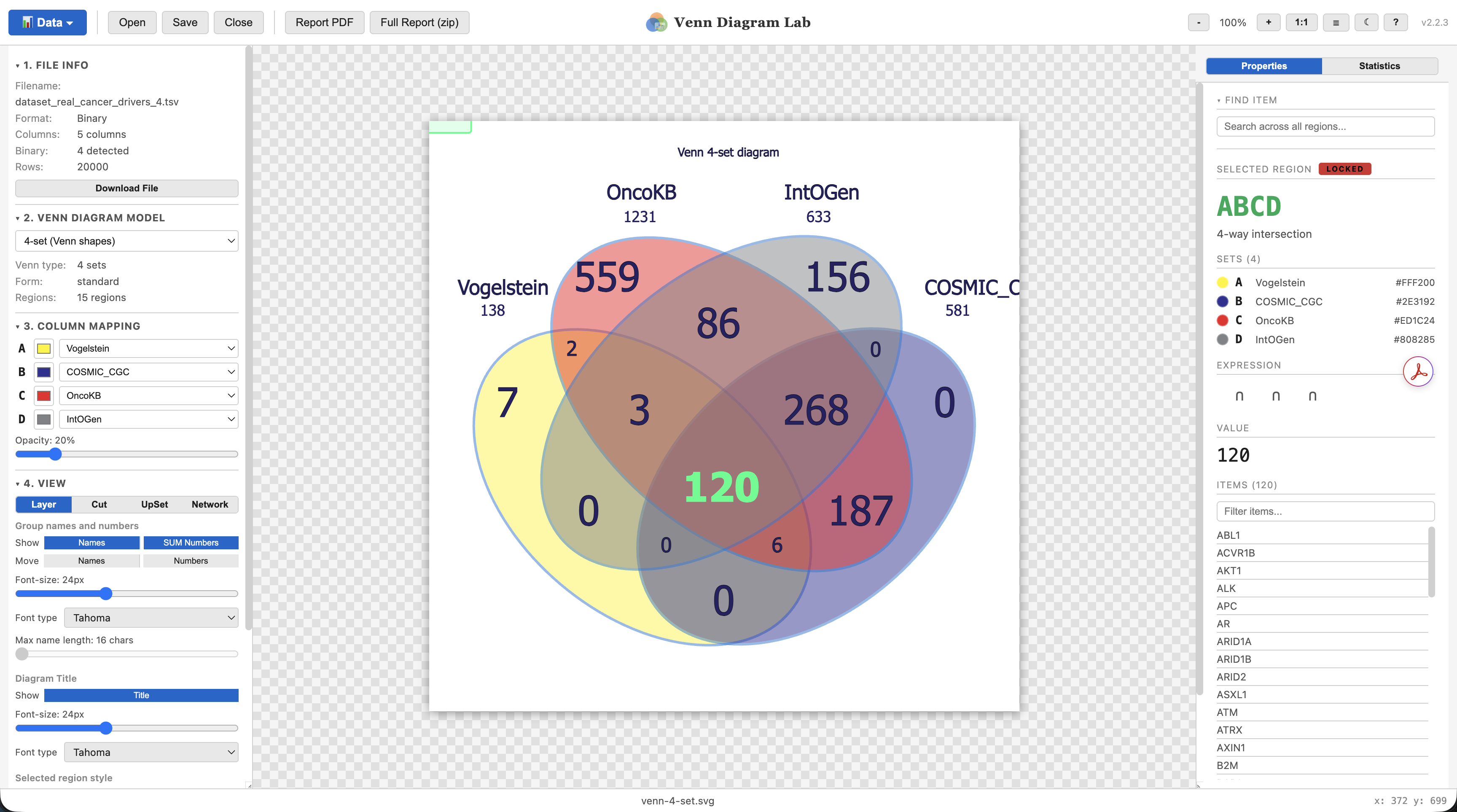

View Mode — Layer View

Load any of the 44 SVG models from the dropdown
Hover over the diagram to detect which intersection region you're in
Region detection uses SVGGeometryElement.isPointInFill() hit-testing
Right panel shows: region label, involved sets with colors, intersection expression
Left panel shows: collapsible region list grouped by depth (Single, 2-way, 3-way, ...)

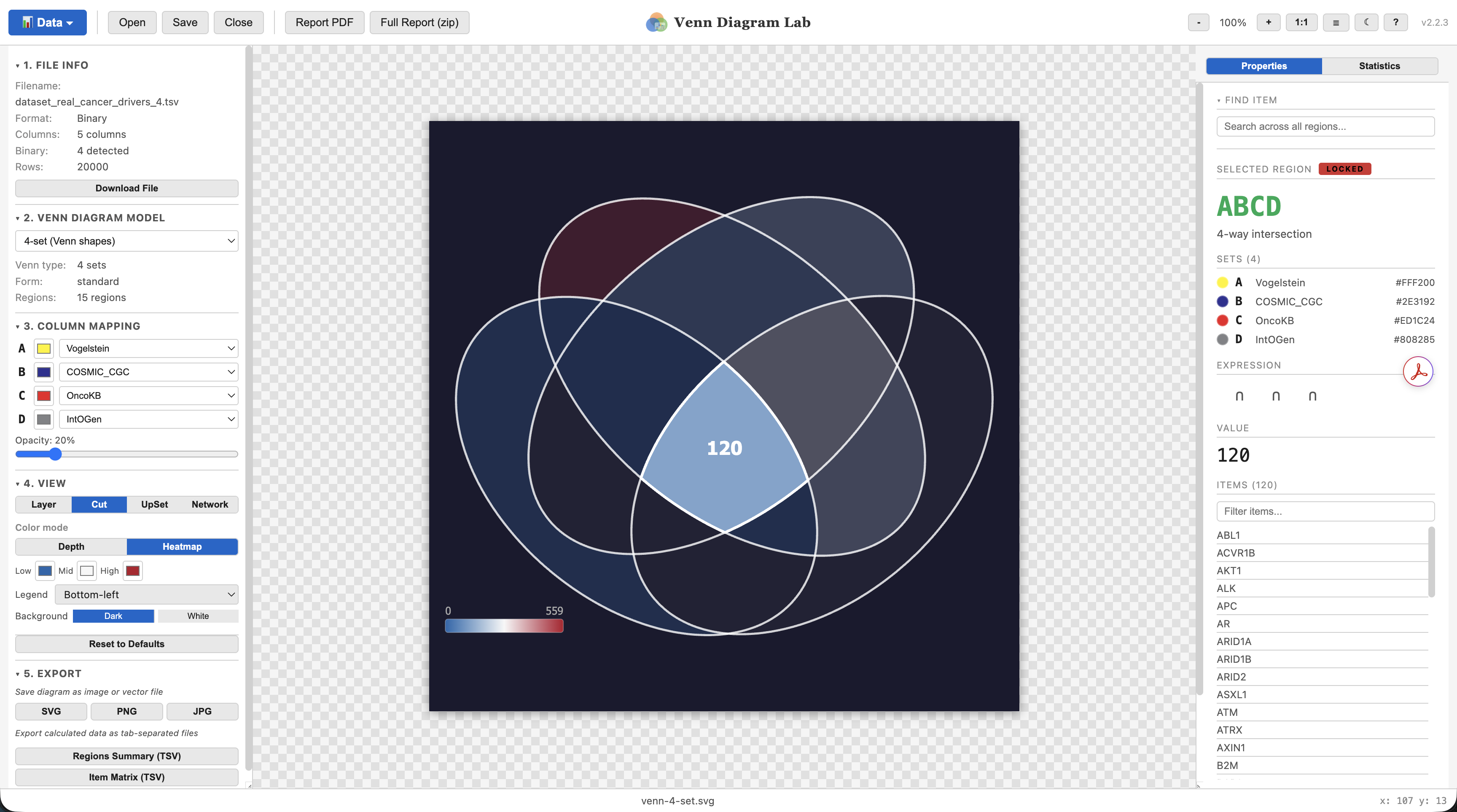

View Mode — Cut View

Renders pre-computed intersection region paths (generated via Shapely Boolean operations)
Each of the 2^n - 1 regions is a separate SVG <path> element with direct mouse events
Hover highlights the region, dims others, shows white outline and centered label
Two color modes: Depth (dark-to-warm by intersection depth) and Heatmap (RdBu diverging scale by count values)

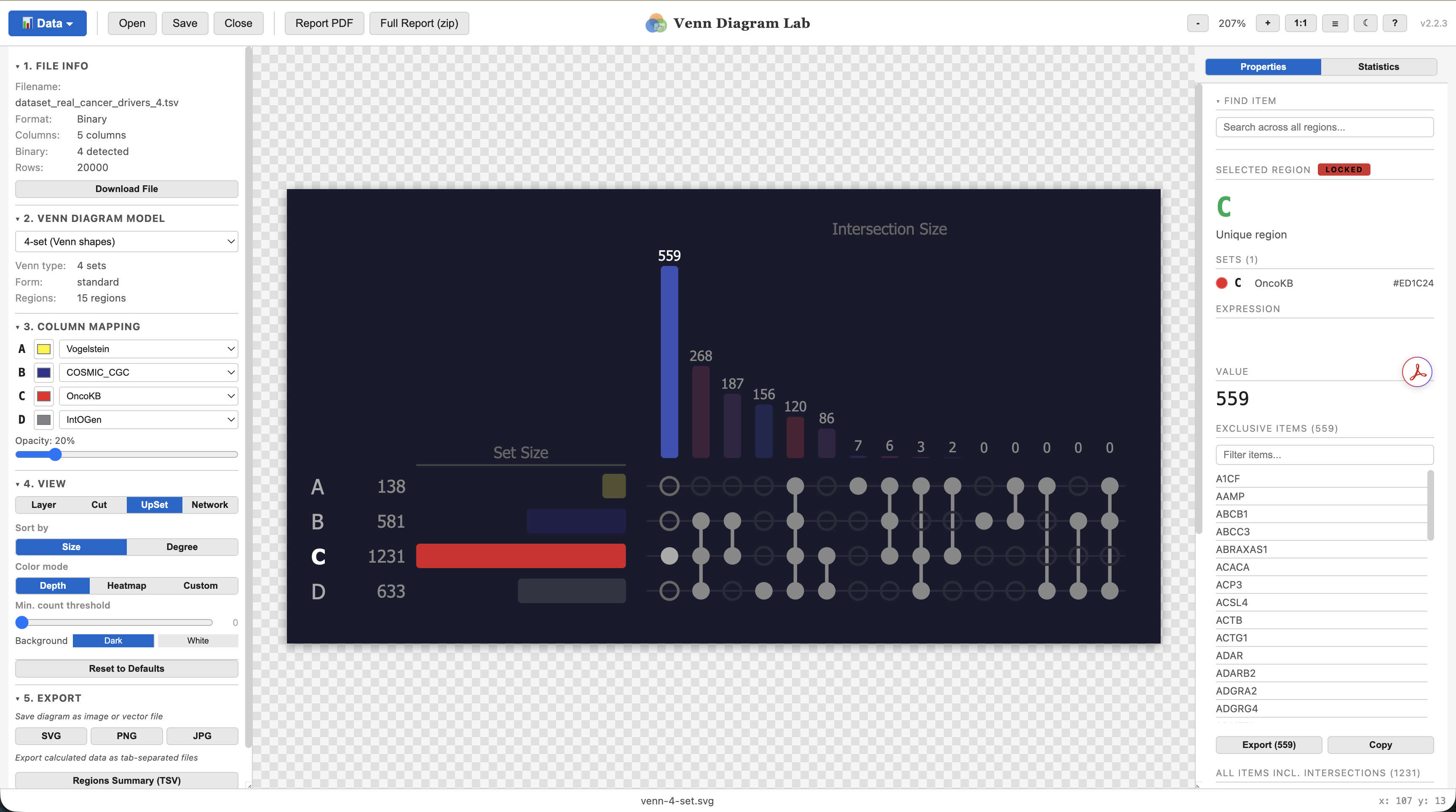

View Mode — UpSet Plot

UpSet plot visualization showing intersection sizes as vertical bars above a dot matrix
Horizontal set size bars on the left, with trimmed set labels and size counts
Hover highlights + tooltip (set names and count), click to lock selection
Pagination: top 50 intersections shown, prev/next page controls
Sort by intersection size (descending) or by degree (number of member sets)
Color modes: Depth (blue-to-red by member count), Heatmap, or Custom single color
Adjustable minimum count threshold filter

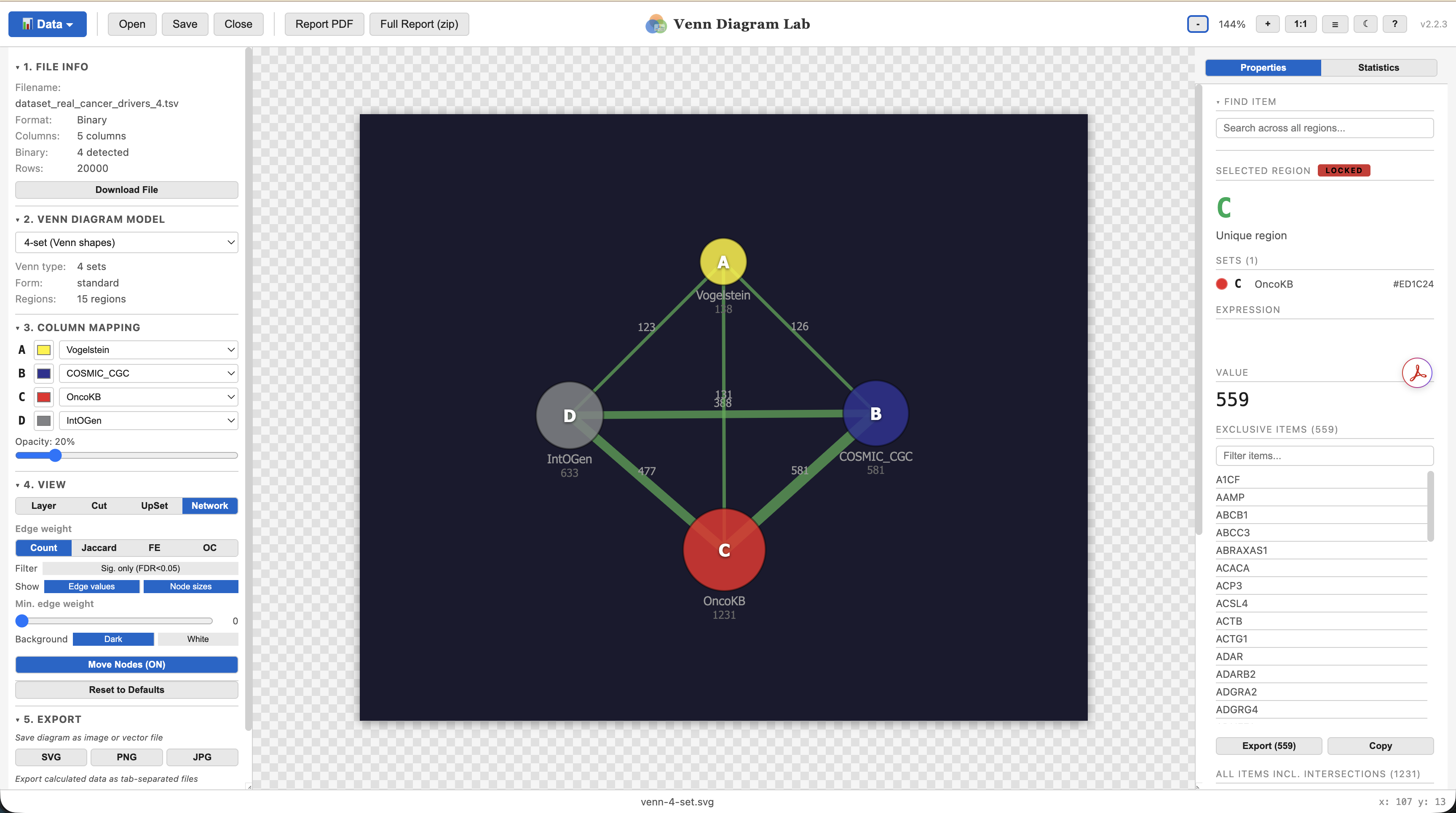

View Mode — Network Diagram

Force-directed network graph of pairwise set relationships
Nodes sized by set cardinality, colored by standard Venn colors, draggable
Edges weighted by: intersection count, Jaccard index, Fold Enrichment, or Overlap Coefficient
Significance coloring: green (FDR<0.05), grey (not significant), red (under-represented)
Click node → select set region; click edge → select intersection region in right panel
Filters: significant edges only, minimum weight threshold
Dark/White background toggle

Edit Mode

Open/Save SVG files
Drag text elements to reposition
Double-click to edit text content
Property panel: position, font size, fill/stroke colors
Undo/Redo (Ctrl+Z / Ctrl+Shift+Z)
Grid overlay and validation checker
Layer tree with visibility toggles
ViewBox editor
Shape move, rotate, and resize tools

Data Mode

Import CSV, TSV, or TXT files via configurable import dialog
Two data formats: Binary (0/1 per cell) and Aggregated (item names per column)
Configurable row/item delimiters, header detection, column selection, row filtering
Per-set color picker, shape opacity slider, font controls for names and title
Auto-capped name font size based on longest column name (16+ chars → 12 px, 20+ → 10 px, 24+ → 9 px, 28+ → 8 px); never increases a smaller user setting
Cut View with Heatmap color mode (customizable 3-point color scale + legend position)
Collapsible sidebar sections (File Info, Model, Column Mapping, View, Export)
Right panel toggle: Properties (region info, items, unlock) / Statistics (Jaccard, Dice, enrichment)
Selected region style: configurable highlight color for hovered/selected count values
Area-proportional diagrams (2-3 sets): computed circle layout where sizes match your data, with accuracy display
Visual model browser after data import — shows compatible diagram models filtered by set count
Auto-calculate on model selection (no manual Calculate button needed)
Find Item search: global cross-region search with match highlighting and region navigation
In-region filter: filter items within a selected region with highlighted matches
Copy region items to clipboard (alongside Export); single-letter regions get separate buttons for Exclusive and All Items incl. intersections

UpSet Plot sub-mode available after calculation (max 20 intersections in print export)

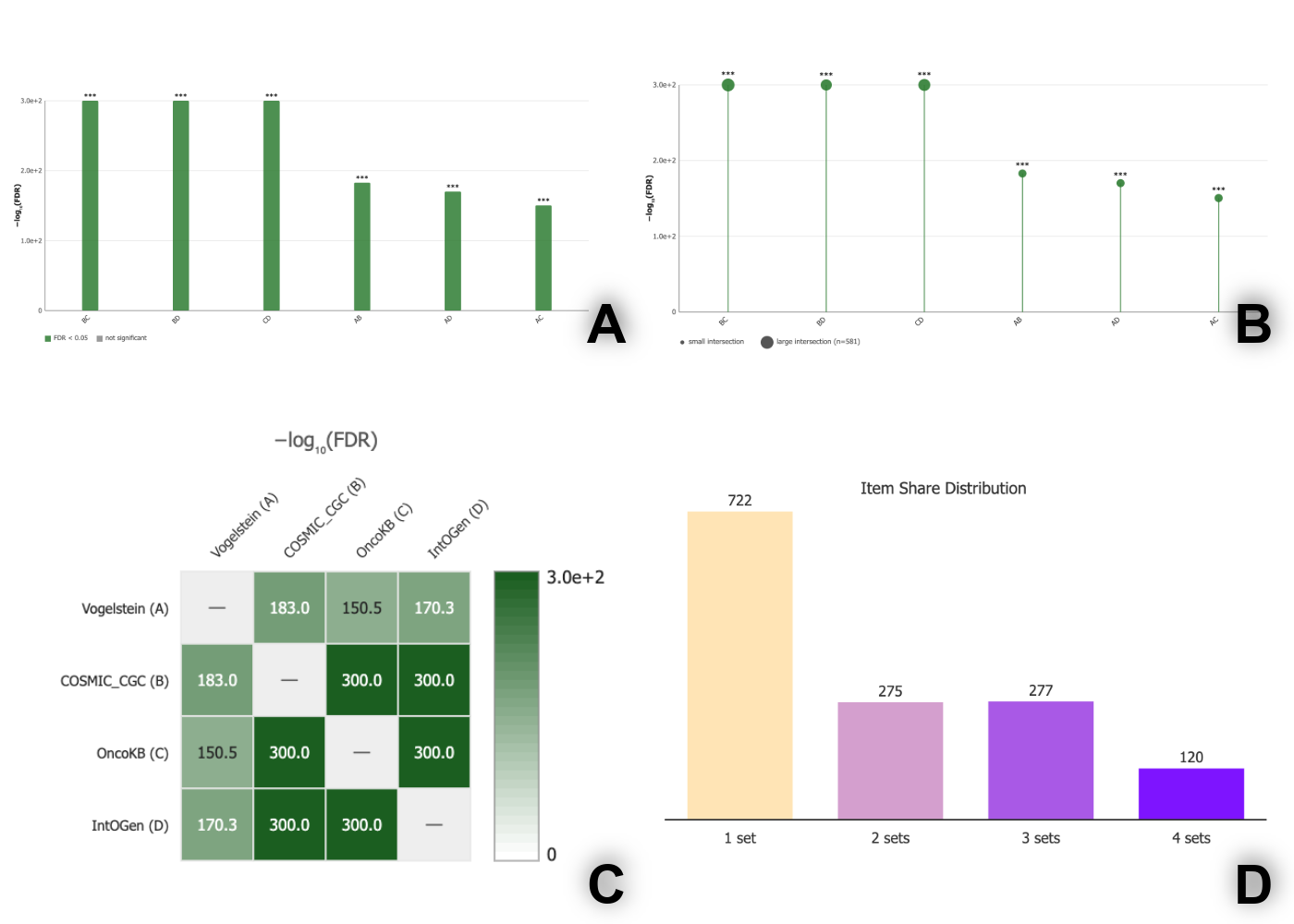

Enrichment Plots: collapsible section with Bar, Lollipop, and Heatmap plots of the pairwise hypergeometric results; metric toggle (−log₁₀(FDR) vs Fold Enrichment); per-plot SVG export
Plot editor: click any enrichment plot thumbnail to open a dedicated editor in the left sidebar (colours, fonts, background, visibility toggles). Per-plot style state; Back to Diagram returns to the previous view
Statistical Methods reference built into the Help dialog (Jaccard, Dice, Overlap Coefficient, hypergeometric enrichment, Fold Enrichment, Benjamini–Hochberg FDR)
Export: SVG / PNG / JPG image export + Regions Summary TSV + Item Matrix TSV
Report PDF: Multi-page A4 report with data overview, pie chart, Venn diagram, UpSet plot, Network diagram with significant edges, full statistical tables (Jaccard, Dice, Enrichment), three enrichment plots, and methodology explanations
Full Report (zip): single download bundling the PDF, TSVs, standalone SVGs, a 3-sheet Excel workbook (enrichment_statistics_{n}-sets.xlsx), the three enrichment stat SVGs, and a README.txt with provenance + the full About This Report text. 0–100% progress bar in the dialog
Export individual region items via right panel
Sample datasets: binary (streaming platforms, cancer drivers, MSigDB hallmark collections) and aggregated (gene sets)
Supports up to 9 sets (A through I)
TSV exports escape spreadsheet-style formula prefixes in exported text cells while preserving the in-app values
Headless / scripted use: the same import / analyze / export surface is available in Python via pip install venn-diagram-lab — byte-identical TSV outputs (parity-tested), the same 44 SVG models, and a 30+ command vdl CLI organised into 6 subapps (render, export, report, data, model, workflow) with a --sample demo flag on every dataset-consuming command. See python/README.md for the full catalog.

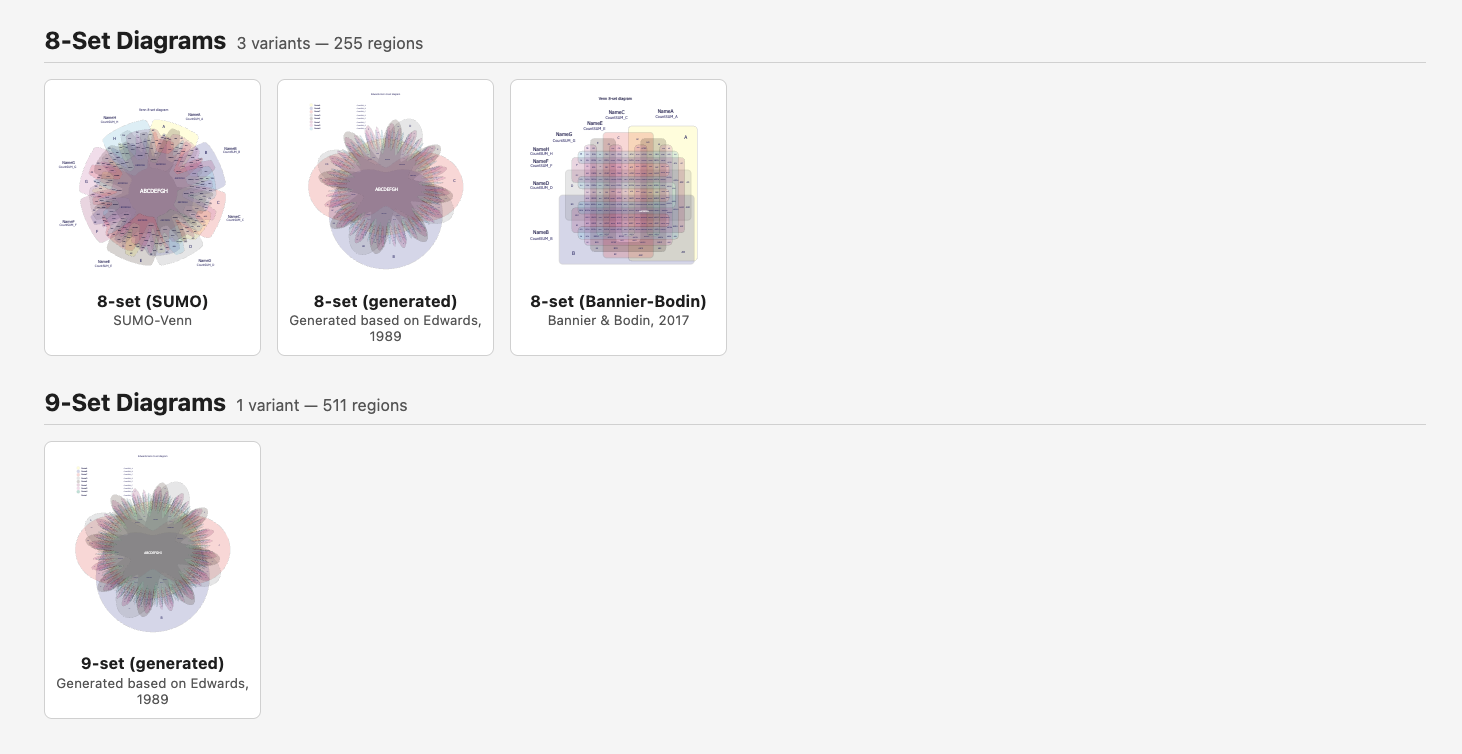

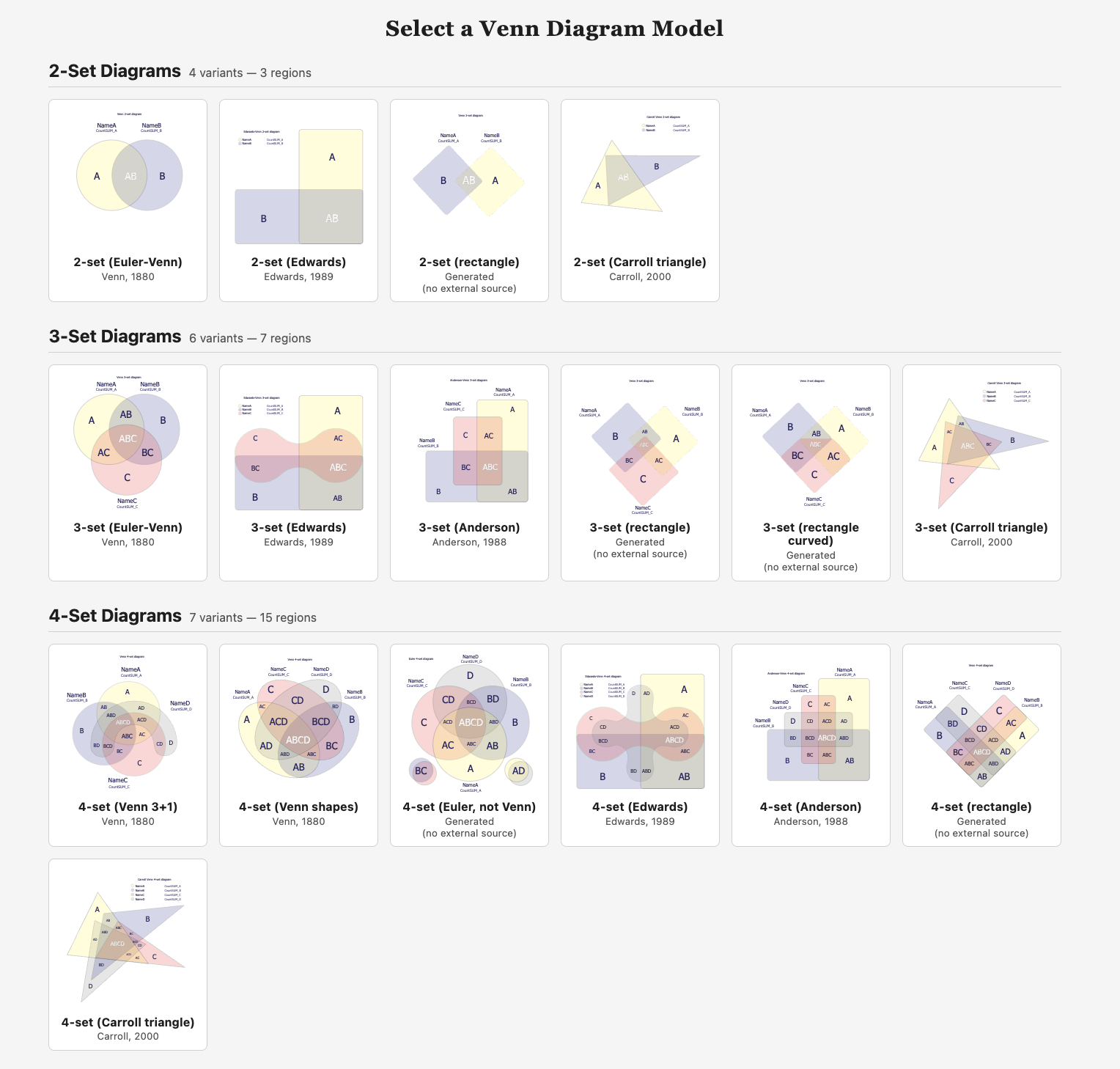

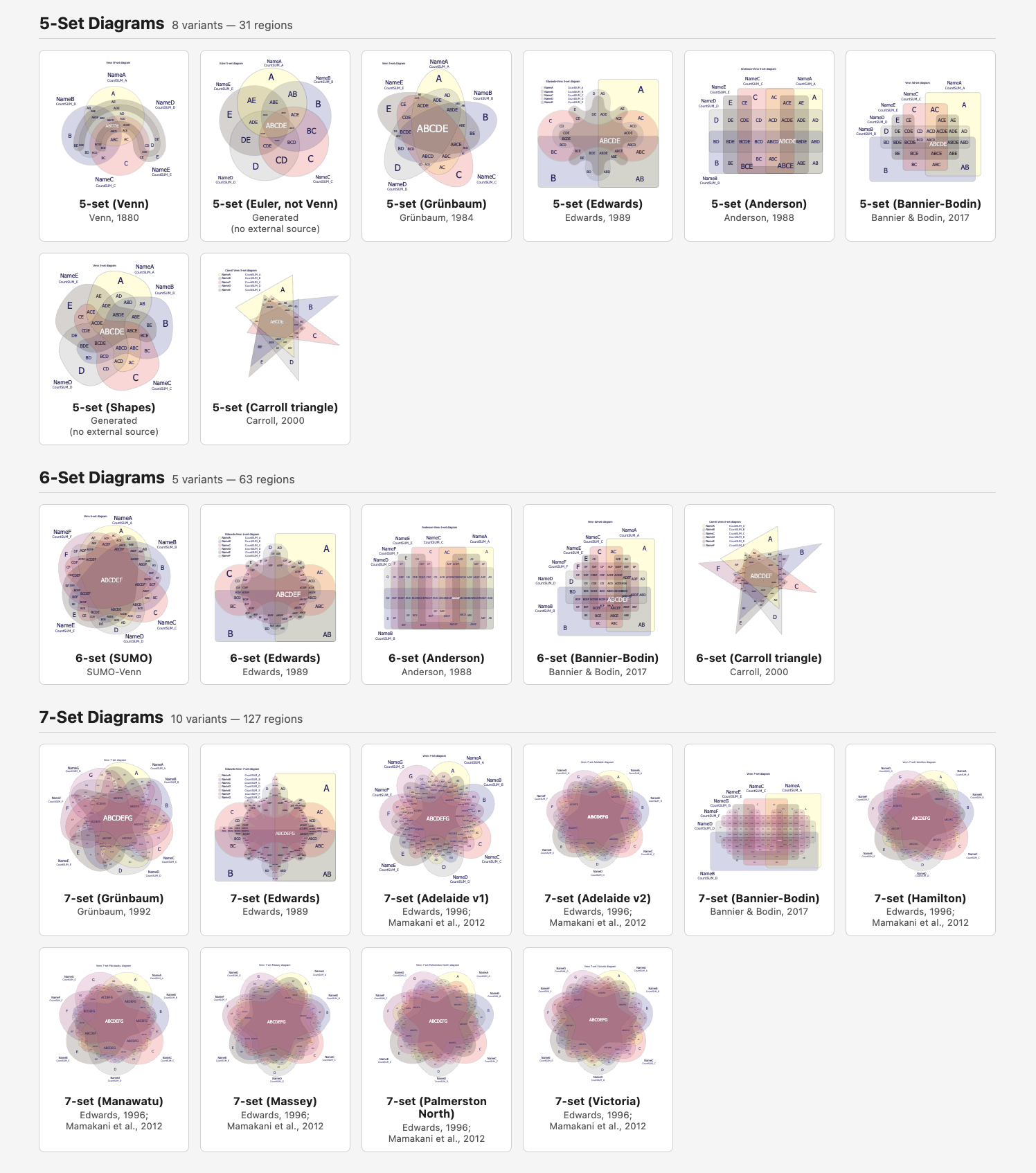

Summary Mode

Dialog gallery of all 44 diagrams
SVG previews rendered inline
Grouped by set count (2-set through 9-set)
Source references linked to publication PDFs (multi-line labels supported)

About Venn Diagrams

Welcome-screen dialog introducing the history, definition, and later mathematical development of Venn diagrams
Three tabbed sections with long-form explanatory text
Custom in-app explanatory SVG illustrations plus a retained primary-source image from Venn's 1880 paper
References section with clickable local PDF links in the built app

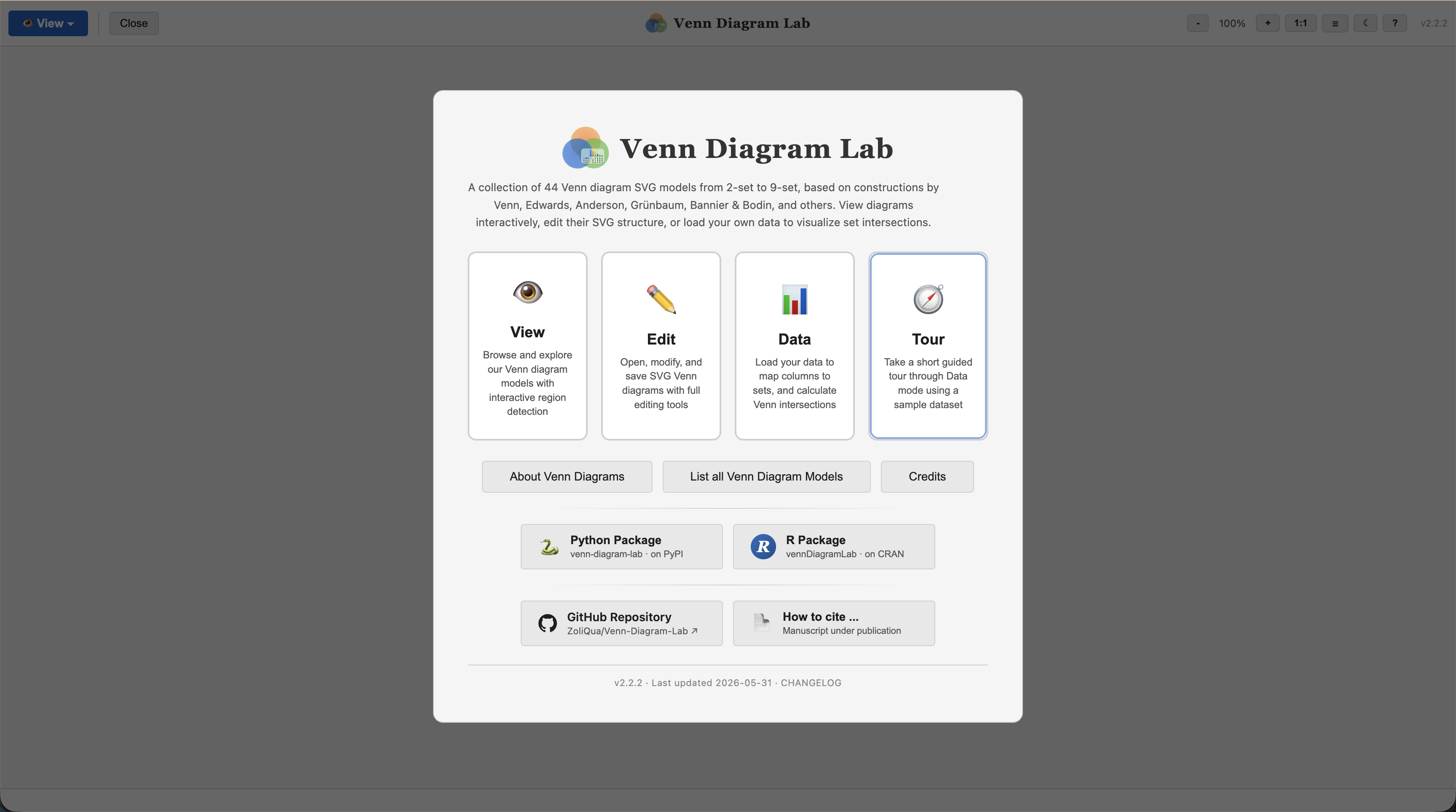

Guided Tour

Fourth welcome-screen card alongside View / Edit / Data
12-step coach-mark walkthrough of Data mode using the pre-loaded Cancer Drivers sample (COSMIC, OncoKB, IntOGen, Vogelstein) on a 4-set Edwards diagram
Covers: Open → File Info → Model → Column Mapping → View cycle (Layer / Cut / UpSet / Network) → Properties with the full ABCD intersection selected → Statistics tab → Enrichment Plots card (auto-cycles Bar → Lollipop → Heatmap, then scrolls to the pairwise stats tables) → Plot editor highlighted on the Heatmap → Report PDF / Full Report (zip)
Replay button on the two auto-cycle steps (View cycle, Plot editor cycle)
Progress dots, Back / Skip / Next + keyboard (←/→/Enter/ESC) navigation; ESC always exits safely to the welcome screen
Also launchable from the Help dialog in any mode (Getting Started → Start the tour)
9 unobtrusive data-tour="..." DOM anchors make tour selectors stable across future UI refactors

Security Notes

index.html defines a restrictive Content Security Policy that keeps the current GA consent loader, local assets, and blob: / data: export paths working.
Data-mode TSV exports escape leading spreadsheet formula prefixes (=, +, -, @) in text cells to reduce Excel/LibreOffice formula execution risk.

Project Structure

├── src/                       React + TypeScript source code
│   ├── App.tsx                Main app component (4 modes)
│   ├── version.ts             Version constant
│   ├── models.ts              44-model catalog + fetch utilities
│   ├── components/            UI components
│   │   ├── Toolbar.tsx        Top bar (mode switcher, zoom, tools, Report PDF / Full Report (zip))
│   │   ├── Canvas.tsx         SVG rendering + interaction
│   │   ├── CutViewCanvas.tsx  Region-based rendering (Cut View)
│   │   ├── UpsetPlot.tsx      UpSet plot SVG rendering
│   │   ├── NetworkPlot.tsx    Force-directed network graph
│   │   ├── EnrichmentPlots.tsx       Enrichment plots card (right panel thumbnails)
│   │   ├── EnrichmentPlotEditor.tsx  Left-sidebar plot style editor
│   │   ├── EnrichmentPlotCanvas.tsx  Central canvas in plot-edit mode
│   │   ├── PdfReportDialog.tsx       PDF report generation dialog
│   │   ├── ZipReportDialog.tsx       Full zip bundle dialog (PDF + TSVs + SVGs + XLSX)
│   │   ├── TourOverlay.tsx           Guided tour overlay (coach marks + progress)
│   │   ├── PasteImportDialog.tsx     Paste gene lists import
│   │   ├── UrlImportDialog.tsx       URL data import with validation
│   │   ├── SampleDataDialog.tsx      Sample dataset selector
│   │   ├── ViewerSidebar.tsx         Model selector + region list
│   │   ├── ViewerInfoPanel.tsx       Region info display (Properties tab)
│   │   ├── DataSummaryPanel.tsx      Statistics tab (Overview + Enrichment Plots + pairwise tables)
│   │   ├── SummaryDialog.tsx         Gallery dialog + SOURCES table
│   │   ├── AboutVennDialog.tsx       Educational welcome-screen dialog
│   │   ├── WelcomeDialog.tsx         Welcome screen (View / Edit / Data / Tour cards)
│   │   ├── HelpDialog.tsx            Mode-specific Help (with Start-tour button)
│   │   ├── Sidebar.tsx               Editor layer tree
│   │   ├── PropertyPanel.tsx         Editor property editor
│   │   └── ...                       Other editor components
│   ├── hooks/                 React hooks
│   │   ├── useSvgDocument.ts  Document state + undo/redo
│   │   ├── useRegionDetection.ts Hit-testing + label-based detection
│   │   ├── useZoomPan.ts      Zoom & pan
│   │   └── ...
│   ├── parser/                SVG parser & serializer
│   ├── utils/                 Shared utilities
│   │   ├── hitTest.ts         Shape containment detection
│   │   ├── regions.ts         Region enumeration (2^n - 1 subsets)
│   │   ├── csvParser.ts       CSV/TSV parser, binary & aggregated Venn calculation
│   │   ├── exportData.ts      TSV export (Region Summary + Item Matrix)
│   │   ├── upsetData.ts       UpSet data conversion + sorting
│   │   ├── pdfReport.ts       PDF report generation (jsPDF, lazy-loaded)
│   │   ├── zipReport.ts       Full zip bundle builder (jszip + exceljs, lazy-loaded)
│   │   ├── reportArtefacts.ts Shared SVG artefact builder (PDF + zip)
│   │   ├── aboutReport.ts     ABOUT_REPORT_SECTIONS (shared by PDF last page and zip README)
│   │   ├── statistics.ts      Pairwise Jaccard / Dice / hypergeometric + BH FDR
│   │   ├── enrichmentPlotSvg.ts    Bar / Lollipop / Heatmap SVG generators (style-aware)
│   │   ├── enrichmentPlotStyle.ts  EnrichmentPlotStyle type + DEFAULT_PLOT_STYLE
│   │   ├── tourSteps.ts       Declarative TOUR_STEPS + TourAction union
│   │   ├── tourMock.ts        Tour dataset config (Cancer Drivers sample)
│   │   ├── svgToImage.ts      SVG-to-PNG capture utility
│   │   ├── upsetSvgBuilder.ts Print-optimized UpSet SVG builder
│   │   ├── networkData.ts     Network data model + force layout algorithm
│   │   ├── networkSvgBuilder.ts Print-optimized Network SVG builder
│   │   ├── proportionalLayout.ts Area-proportional circle solver (2/3-set)
│   │   ├── proportionalModel.ts  VennDocument generator for proportional
│   │   └── proportionalRegions.ts Cut View region paths for proportional
│   └── __tests__/             Test suites
│       ├── aboutVennContent.test.ts About dialog content consistency tests
│       ├── exportData.test.ts  TSV export hardening tests
├── models/
│   ├── svg/                   44 SVG Venn diagram models
│   └── json/                  44 JSON pre-computed region data
├── python/                    Companion Python module (PyPI: venn-diagram-lab)
│   ├── README.md              Pip-page docs (install, quickstart, CLI, notebooks)
│   ├── CHANGELOG.md           Per-package changelog
│   ├── RELEASE.md             Operator runbook (PyPI + Zenodo release flow)
│   ├── pyproject.toml         Hatch build config; OIDC trusted-publisher metadata
│   ├── src/venn_diagram_lab/  Package source (io, analysis, statistics, render/, cli)
│   ├── examples/              8 executable Jupyter notebooks (gallery + pipelines)
│   ├── scripts/               sync_data.py + notebook builder scripts
│   └── tests/                 Pytest suite + golden parity fixtures vs the web tool
├── r/                         Companion R package (CRAN: vennDiagramLab)
│   ├── DESCRIPTION            CRAN-style metadata + Authors@R
│   ├── README.md              CRAN-style README (install, quickstart, vignette index)
│   ├── NEWS.md                Per-version release notes (CRAN-rendered)
│   ├── RELEASE.md             Operator runbook (CRAN + Bioc + Zenodo release flow)
│   ├── cran-comments.md       CRAN reviewer cover letter
│   ├── R/                     Source — 4 S4 classes, io, analysis, statistics, render/
│   ├── vignettes/             8 RMarkdown vignettes (executed during R CMD check)
│   ├── inst/extdata/          Bundled SVG templates + sample datasets (synced from monorepo)
│   ├── inst/CITATION          bibentry — concept DOI + CRAN-minted DOI
│   ├── man/                   Roxygen-generated Rd files
│   ├── tests/                 testthat — 590+ tests + parity vs Python golden fixtures
│   └── data-raw/sync_data.R   Populate inst/extdata/ from monorepo models/ + data/
├── public/about-venn/         Custom educational SVG/PNG assets for the About dialog
├── publications/              Research papers (PDF)
├── samples/                   Source SVG samples for model generation
├── scripts/                   Repo-level tooling (parity-fixture generator, etc.)
├── *.py                       Python utility scripts (model-data generation)
├── data/                      Sample datasets (CSV / TSV)
├── CHANGELOG.md               Version history
├── VENN-DIAGRAM-SVG-SPECIFICATION.md  SVG format specification
├── VENN-DIGARAM-PROJECT-STRUCTURE.md  Standard color mapping & project info
└── package.json               Node.js project

SVG Format

All 44 models use a standardized SVG structure. See VENN-DIAGRAM-SVG-SPECIFICATION.md for the full specification.

Key elements:

<g id="Shapes"> — Shape geometry (ShapeA-ShapeI)
<g id="ShapesExtras"> — Extra shapes for Euler diagrams (ShapeA2, ShapeB2, ...)
<g id="Group_Values"> — Intersection count labels (Count_A, Count_AB, ..., Count_ABCDEFGHI)
<g id="Group_Names"> — Set name labels (NameA-NameI)
<g id="Group_CountSums"> — Set total labels
<g id="Group_Bullets"> — Color legend circles

Region count: 2^n - 1 (3 for 2-set, 7 for 3-set, 15 for 4-set, ..., 511 for 9-set)

Standard Color Mapping

Set	Color	Hex
A	Yellow	`#FFF200`
B	Blue	`#2E3192`
C	Red	`#ED1C24`
D	Grey	`#808285`
E	Brown	`#3C2415`
F	Magenta	`#9E1F63`
G	Pink	`#CA4B9B`
H	Cyan	`#21AED1`
I	Orange	`#F7941E`

Diagram Models

2-Set (3 regions)

File	Type	Source
`venn-2-set.svg`	Classic two-circle	Venn, 1880
`venn-2a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-2e-set-carroll-triangle.svg`	Carroll triangle	Carroll, 2000
`venn-2e-set-rectangle.svg`	Rectangle layout	Generated (no external source)

3-Set (7 regions)

File	Type	Source
`venn-3-set.svg`	Classic three-circle	Venn, 1880
`venn-3a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-3b-set-anderson.svg`	Anderson construction	Anderson, 1988
`venn-3e-set-rectangles.svg`	Rectangles	Generated (no external source)
`venn-3e-set-rectangle-curved.svg`	Curved rectangles	Generated (no external source)
`venn-3e-set-carroll-triangle.svg`	Carroll triangle	Carroll, 2000

4-Set (15 regions)

File	Type	Source
`venn-4-set.svg`	Classic overlapping ellipses	Venn, 1880
`venn-4a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-4b-set-anderson.svg`	Anderson construction	Anderson, 1988
`venn-4e-set-euler.svg`	Euler diagram variant	Generated (no external source)
`venn-4e-set-rectangle.svg`	Rectangle layout	Generated (no external source)
`venn-4e-set-carroll-triangle.svg`	Carroll triangle	Carroll, 2000
`venn-4f-set.svg`	Original Venn construction	Venn, 1880

5-Set (31 regions)

File	Type	Source
`venn-5-set-grunbaum.svg`	Grunbaum ellipse	Grunbaum, 1984
`venn-5a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-5b-set-anderson.svg`	Anderson construction	Anderson, 1988
`venn-5d-set-bannier.svg`	Bannier-Bodin variant	Bannier & Bodin, 2017
`venn-5e-set.svg`	Organic/freeform	Generated (no external source)
`venn-5e-set-carroll-triangle.svg`	Carroll triangle	Carroll, 2000
`venn-5e-set-euler.svg`	Euler diagram (21/31 regions)	Generated (no external source)
`venn-5f-set.svg`	Original Venn construction	Venn, 1880

6-Set (63 regions)

File	Type	Source
`venn-6-set.svg`	SUMO-Venn construction	SUMO-Venn
`venn-6a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-6b-set-anderson.svg`	Anderson construction	Anderson, 1988
`venn-6d-set-bannier.svg`	Bannier-Bodin variant	Bannier & Bodin, 2017
`venn-6e-set-carroll-triangle.svg`	Carroll triangle	Carroll, 2000

7-Set (127 regions)

File	Type	Source
`venn-7-set-grunbaum.svg`	Grunbaum construction	Grunbaum, 1992
`venn-7a-set-edwards.svg`	Edwards construction	Edwards, 1996
`venn-7c-set-adelaide.svg`	Adelaide symmetric	Edwards, 1996; Mamakani et al., 2012
`venn-7d-set-bannier.svg`	Bannier-Bodin variant	Bannier & Bodin, 2017
`venn-7e-set-adelaide.svg`	Adelaide variant	Edwards, 1996; Mamakani et al., 2012
`venn-7e-set-hamilton.svg`	Hamilton variant	Edwards, 1996; Mamakani et al., 2012
`venn-7e-set-manawatu.svg`	Manawatu variant	Edwards, 1996; Mamakani et al., 2012
`venn-7e-set-massey.svg`	Massey variant	Edwards, 1996; Mamakani et al., 2012
`venn-7e-set-palmerston-north.svg`	Palmerston North variant	Edwards, 1996; Mamakani et al., 2012
`venn-7e-set-victoria.svg`	Victoria variant	Edwards, 1996; Mamakani et al., 2012

8-Set (255 regions)

File	Type	Source
`venn-8-set.svg`	SUMO-Venn construction	SUMO-Venn
`venn-8a-set-edwards.svg`	Edwards construction	Generated based on Edwards, 1989
`venn-8d-set-bannier.svg`	Bannier-Bodin variant	Bannier & Bodin, 2017

9-Set (511 regions)

File	Type	Source
`venn-9a-set-edwards.svg`	Edwards construction	Generated based on Edwards, 1989

Publications

File	Reference
`Venn-1880.pdf`	Venn, J. (1880). On the Diagrammatic and Mechanical Representation of Propositions and Reasonings.
`Grunbaum-1984.pdf`	Grunbaum, B. (1984). The construction of Venn diagrams.
`Grunbaum-1992.pdf`	Grunbaum, B. (1992). Venn diagrams and independent families of sets.
`Anderson-1988.pdf`	Anderson, I. (1988). Combinatorics of Finite Sets.
`Anderson-and-Cleaver-1965.pdf`	Anderson, I. & Cleaver (1965). Venn type diagrams for arguments of n terms.
`Edwards-1996.pdf`	Edwards, A.W.F. (1996). Seven-set Venn diagrams with rotational and polar symmetry.
`Carroll-2000.pdf`	Carroll, C. (2000). Venn diagrams using convex polygons.
`Mamakani-et-al-2012.pdf`	Mamakani, K. et al. (2012). New roses: simple symmetric Venn diagrams.
`Mamakani-and-Ruskey-2012.pdf`	Mamakani, K. & Ruskey, F. (2012). A new rose: the first simple symmetric 11-Venn diagram.
`Bannier-and-Bodin-2017.pdf`	Bannier, D. & Bodin, A. (2017). Venn diagram constructions for higher set counts.
`Griggs-et-al-2004.pdf`	Griggs, J. et al. (2004). Venn diagrams and symmetric chain decompositions.
`Farrokhi-lecture-2023.pdf`	Farrokhi, M. (2023). Lecture notes on Venn diagram constructions.

Publication Reproducibility

This repository is intended to be released as a citable software artifact. For a manuscript-facing release, use a tagged commit where src/version.ts, package.json, package-lock.json, README.md, CHANGELOG.md, and CITATION.cff all report the same SemVer version.

Verified Environment

Operating system used for this review: macOS Darwin 25.4.0, arm64
Node.js used for this review: v25.9.0
npm used for this review: 11.12.1
Minimum expected runtime: Node.js 18+ and npm 9+

Verification Commands

npm install
npm test
npm run build
npm run lint

Release candidates should pass npm test, npm run build, and npm run lint before archiving. If lint is intentionally deferred, the release notes should state the exact lint status and why it does not affect the archived scientific outputs.

Archival Release / DOI Workflow

Update src/version.ts, package.json, package-lock.json, README.md, CHANGELOG.md, and CITATION.cff to the same SemVer version and release date.
Run the verification commands above from a clean checkout.
Create a signed Git tag such as v1.13.5 and a GitHub release from that tag.
Archive the GitHub release with Zenodo or another DOI provider.
Add the DOI to CITATION.cff, the GitHub release notes, and the manuscript software availability statement.

Python Scripts

Script	Description
`generate_region_json.py`	Generate JSON region data from SVG models (Shapely Boolean ops)
`svg_rotate_labels.py`	Cyclic label rotation with color & sort support
`svg_generate_tests.py`	Generate test SVG files
`svg_normalize_after_illustrator.py`	Normalize SVGs after Illustrator export
`svg_center_texts.py`	Center text elements in SVGs

Getting Started

Prerequisites

Node.js 18+
npm 9+

Installation

git clone https://github.com/ZoliQua/Venn-Diagram-Lab.git
cd Venn-Diagram-Lab
npm install

Development

npm run dev        # Start dev server (http://localhost:5173)
npm run build      # Production build -> dist/
npm run preview    # Preview production build
npm run test       # Run test suite (vitest)
npm run test:watch # Watch mode
npm run lint       # ESLint

Python module

The repo also hosts the venn-diagram-lab PyPI package under python/. To work on it locally:

python -m venv .venv && source .venv/bin/activate
python python/scripts/sync_data.py        # populate _data/ from models/ and data/
pip install -e "python/[dev]"
pytest python/tests/ -q

See python/README.md for the full Python development guide, notebook gallery, parity-test harness, and CLI reference.

JSON Region Generation

python generate_region_json.py                     # Generate missing JSONs only
python generate_region_json.py --all               # Regenerate all JSONs
python generate_region_json.py venn-3e-set-rectangles  # Specific diagram

Requires Python 3 with shapely installed.

Tech Stack

Layer	Technology
Framework	React 19
Language	TypeScript 5.9
Build	Vite 8
Testing	Vitest 4 (623 tests)
Styling	Custom CSS (dark + light theme)
SVG	Native DOM API
PDF export	jsPDF (lazy-loaded)
Zip / Excel export	jszip + exceljs (lazy-loaded)
Region computation	Python + Shapely
Python module	`venn-diagram-lab` on PyPI — see `python/README.md`
R package	`vennDiagramLab` on CRAN — see `r/README.md`

No external UI libraries — pure React + custom CSS. Heavy export libraries (jsPDF, jszip, exceljs) are lazy-loaded on demand so the main bundle stays lean.

Authors

Zoltán Dul (ORCID 0000-0002-9523-3450)
Márton Ölbei (ORCID 0000-0002-4903-6237)
N. Shaun B. Thomas
Azeddine Si Ammour (ORCID 0000-0002-5504-4444)
Attila Csikász-Nagy (ORCID 0000-0002-2919-5601)

License

MIT — free to use. See SVG file headers for details.

Name		Name	Last commit message	Last commit date
Latest commit History 302 Commits
.github/workflows		.github/workflows
credits		credits
data		data
models		models
packages		packages
public		public
publications		publications
python		python
r		r
scripts		scripts
src		src
.gitattributes		.gitattributes
.gitignore		.gitignore
AGENTS.md		AGENTS.md
CHANGELOG.md		CHANGELOG.md
CITATION.cff		CITATION.cff
CLAUDE.md		CLAUDE.md
LICENSE		LICENSE
README.md		README.md
VENN-DIAGRAM-SVG-SPECIFICATION.md		VENN-DIAGRAM-SVG-SPECIFICATION.md
VENN-DIGARAM-PROJECT-STRUCTURE.md		VENN-DIGARAM-PROJECT-STRUCTURE.md
VENN-INFO.md		VENN-INFO.md
eslint.config.js		eslint.config.js
generate_region_js.py		generate_region_js.py
generate_region_json.py		generate_region_json.py
index.html		index.html
package-lock.json		package-lock.json
package.json		package.json
svg_center_texts.py		svg_center_texts.py
svg_generate_tests.py		svg_generate_tests.py
svg_normalize_after_illustrator.py		svg_normalize_after_illustrator.py
svg_rotate_labels.py		svg_rotate_labels.py
tsconfig.app.json		tsconfig.app.json
tsconfig.json		tsconfig.json
tsconfig.node.json		tsconfig.node.json
vite.config.ts		vite.config.ts

Folders and files

Latest commit

History

Repository files navigation

Venn Diagram Lab

Headless companion packages (Python, R, Node)

Features

Four Modes

View Mode — Layer View

View Mode — Cut View

View Mode — UpSet Plot

View Mode — Network Diagram

Edit Mode

Data Mode

Summary Mode

About Venn Diagrams

Guided Tour

Security Notes

Project Structure

SVG Format

Standard Color Mapping

Diagram Models

2-Set (3 regions)

3-Set (7 regions)

4-Set (15 regions)

5-Set (31 regions)

6-Set (63 regions)

7-Set (127 regions)

8-Set (255 regions)

9-Set (511 regions)

Publications

Publication Reproducibility

Verified Environment

Verification Commands

Archival Release / DOI Workflow

Python Scripts

Getting Started

Prerequisites

Installation

Development

Python module

JSON Region Generation

Tech Stack

Authors

License

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 9

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
