jDCS

Java Data Collector Service
A Modbus RTU data collection framework for industrial sites.
Get the collection core right. Leave the rest to you.

---

English | 简体中文

---

Why this project exists

Modbus data collection looks simple. In practice, it's full of traps:

• Serial ports don't have "disconnect" events. When a TCP peer disappears, you get a FIN/RST. When a serial peer goes silent, you get nothing. The library thinks everything is fine — the other side just stops answering.
• JNI calls can hang forever. Future.cancel(true) only sets an interrupt flag — it can't break through a JNI call. When the driver underneath gets stuck, the main thread can bail out via a hard timeout, but the JNI thread leaks permanently.
• A frozen process looks alive to systemd. The JVM is still running, but collection stopped ten minutes ago. Restart=always won't help — the process never died.

These aren't theoretical. Anyone who has run Modbus collection unattended for months has hit them.

jDCS takes the solutions to these problems and turns them into a base framework:

• The collection core is solid — automatic reconnect, hard timeouts, retries, JNI hang detection, watchdog, systemd fallback.
• The periphery is yours — data sinks, point sources, log policies. We give you interfaces and default implementations, and assume nothing else.

It's not turnkey. It's a runnable, trimmable, extensible skeleton.

---

Screenshots

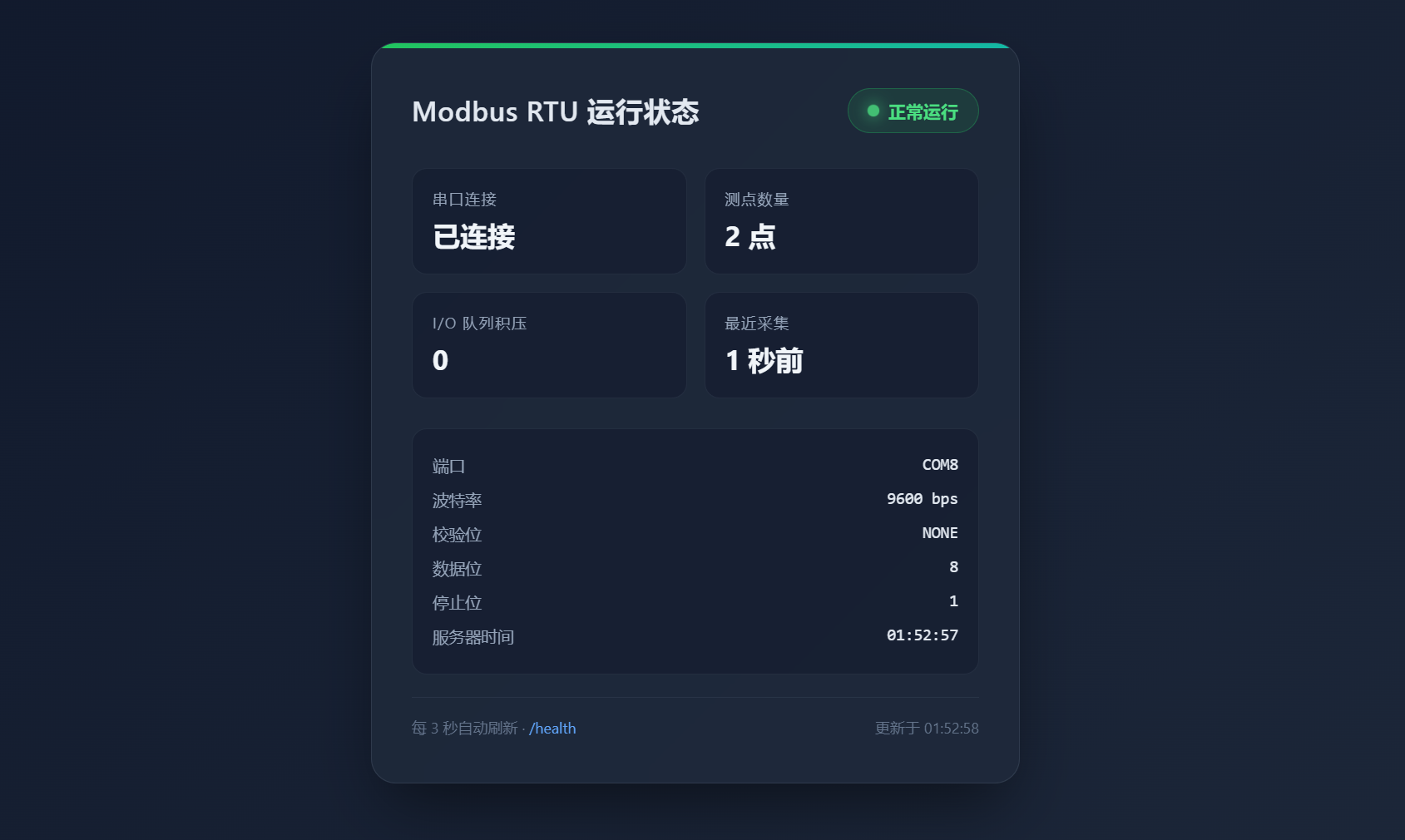

Status page

Open http://localhost:8080/ and you'll see live status — serial connection, point count, I/O queue backlog, time since last collection. Refreshes every 3 seconds. Single static HTML file. No build step, no CDN.

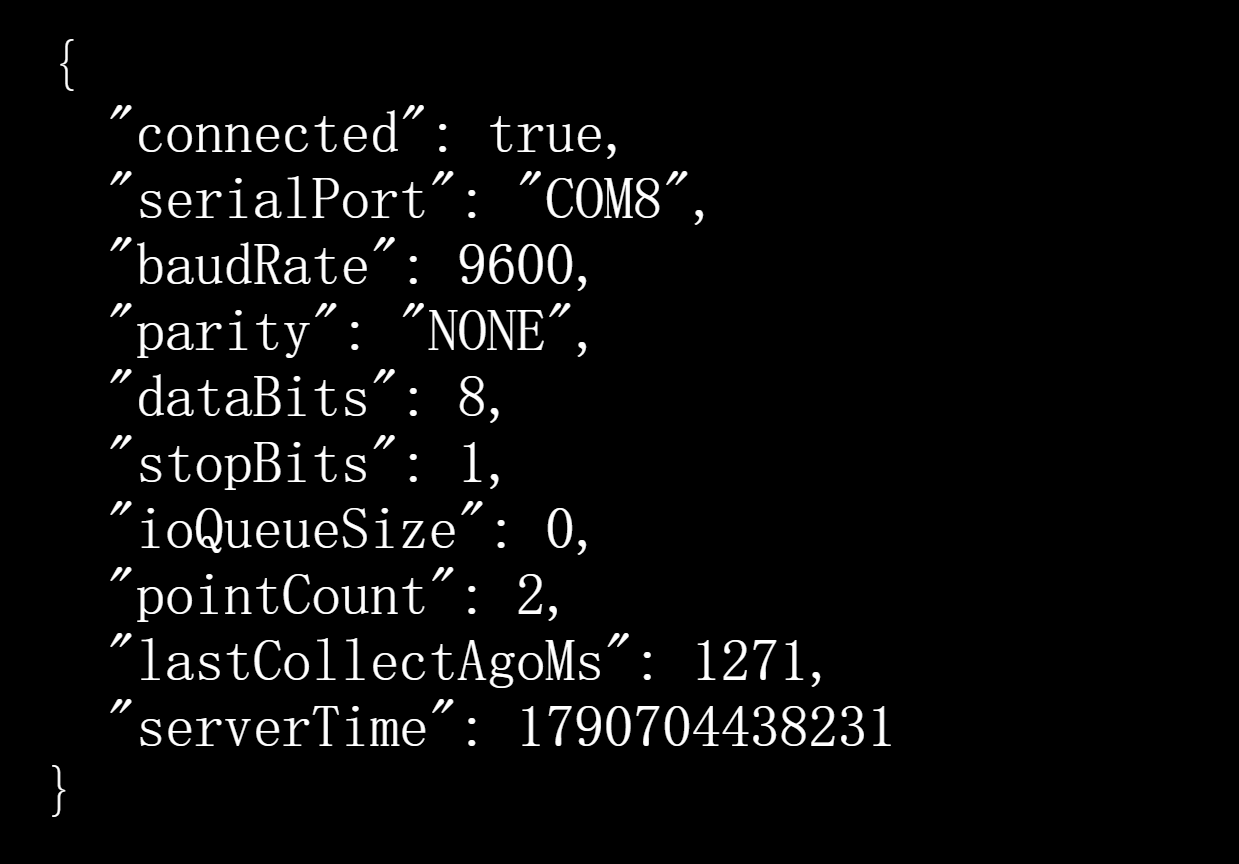

Health endpoint

GET /health returns JSON. Wire it into Prometheus, a K8s liveness probe, or your own admin UI.

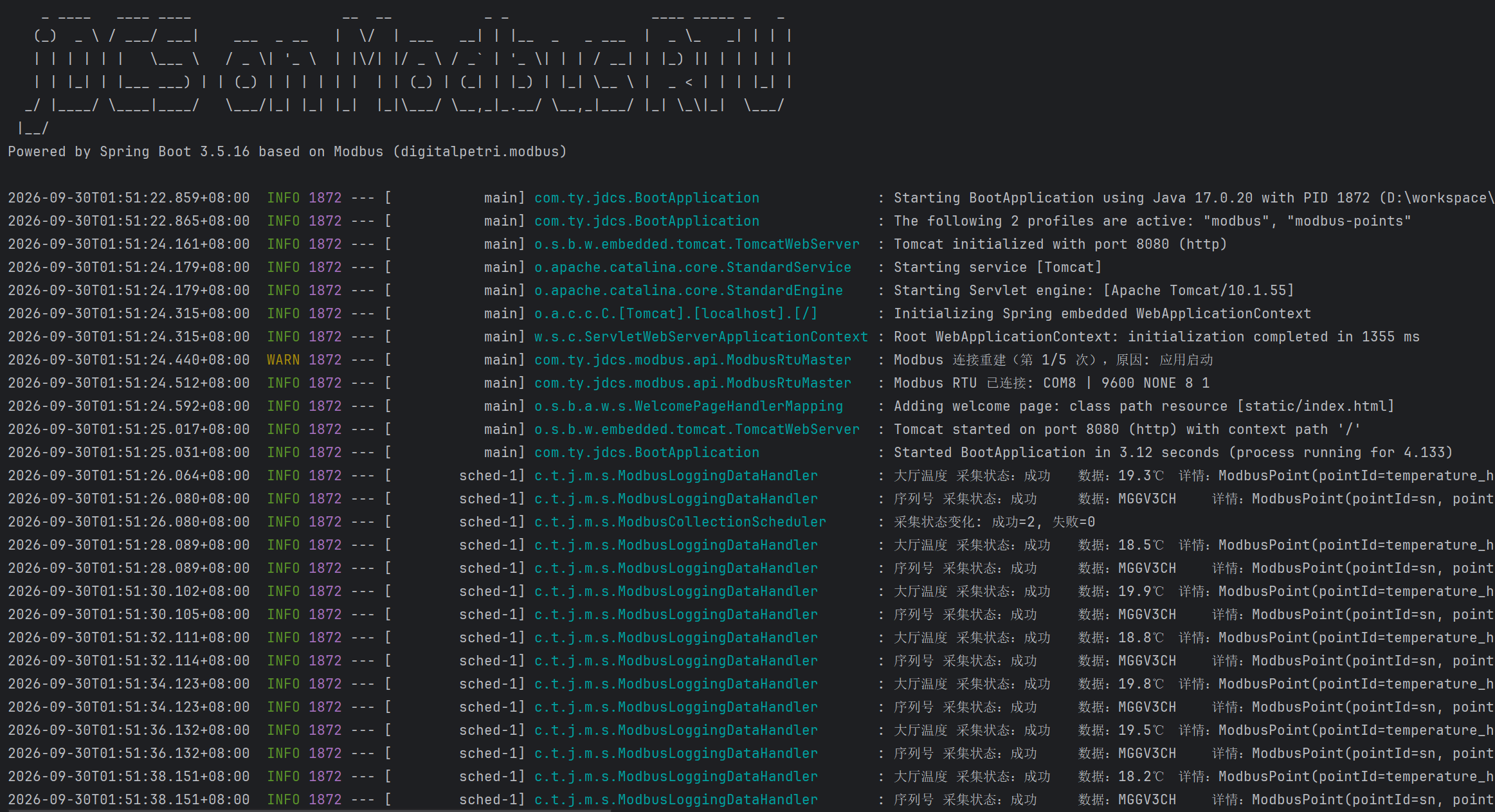

Collection log

The default data sink logs each point's engineering value. Swap in your own storage or reporting by implementing ModbusDataHandler — it's one interface.

---

Features

Feature	Notes
Batch read merging	Groups points by (slaveId, functionCode) and merges adjacent addresses into one request. Fewer round trips on the bus.
Bit-type function codes are isolated	FC01/FC02 responses are bit-packed. They never get merged — merging them would silently slice the wrong bits.
Layered exception isolation	Batch / slice / handler — three layers. One point failing doesn't take down the whole cycle.
Hard timeout + session discard	On timeout, throw away the whole session (client + executor). Never reuse a half-dead connection.
JNI hang detection	Counts modbus-io-* threads directly. Exceeds threshold → process exits on purpose.
Independent watchdog	A separate @Scheduled thread monitors for stalled scheduling and queue backups.
Industrial data model	Types match InHand gateways: BOOL / INT16 / UINT16 / INT32 / UINT32 / FLOAT32 / INT64 / UINT64 / DOUBLE64 / STRING.
Full byte order coverage	ABCD / CDAB / BADC / DCBA, plus aliases like Swapped and Big_Endian.
Minimal dependencies	modbus-serial + spring-boot-starter-web + Lombok. That's it.
Zero-friction extension	Swap the data sink, point source, or log policy without touching the core.

Full feature list and configuration reference: Architecture_API.md.

---

Architecture: where the robustness comes from

If you read one section, read this one.

The robustness here isn't from stacking safety nets. It comes from layered defense — each layer handles a different kind of failure. Skip any layer and something will slip through.

┌─────────────────────────────────────────────────────────────┐
│ L5  systemd / Docker restart policy / K8s liveness          │  Process-level restart
├─────────────────────────────────────────────────────────────┤
│ L4  ModbusFatalErrorHandler → Runtime.halt(-1)              │  Intentional exit, OS restarts
├─────────────────────────────────────────────────────────────┤
│ L3  ModbusWatchdog (its own @Scheduled thread)              │  Side-channel monitoring
├─────────────────────────────────────────────────────────────┤
│ L2  Session discard + cooled rebuild                        │  Connection-level self-healing
├─────────────────────────────────────────────────────────────┤
│ L1  Per-read: retries + application-level hard timeout      │  Request-level
└─────────────────────────────────────────────────────────────┘

L1 · Request level: retries + hard timeout

Every Modbus request has two protections:

• Transport errors retry automatically (CRC errors, malformed responses) — up to read-retry-count times.
• Application-level hard timeout — operation-timeout-ms. Returns on the dot. No infinite waits.

The key distinction: protocol errors do not retry. A slave returning an exception code is telling you about its own problem. Retrying just wastes bus time.

L2 · Connection level: session discard + cooled rebuild

This is where jDCS differs most from typical Modbus wrappers.

Modbus RTU is serial by nature. Once a request times out, the session might be half-dead. Continuing to use it just poisons the next request. jDCS's answer: throw away the whole session (client + dedicated executor). The next read rebuilds it.

Rebuilds are rate-limited. If N points are all waiting on a rebuild in one cycle, with no cooling window you'd burn through every reconnect attempt in a single pass. The cooling window throttles retries to reconnect-interval-ms, letting the schedule drive reconnection instead.

L3 · Monitor level: watchdog (side channel)

This covers what L1 and L2 can't see.

Even when the collection path looks fine, two things can still happen:

1. The scheduler stalls. @Scheduled stops firing — thread exhaustion, scheduler corruption.
2. The queue backs up. The modbus-io thread can't keep up; the queue keeps growing.

The watchdog runs on its own thread. Even if the collection thread is stuck, it keeps checking and spots the problem.

L4 · Process level: intentional exit

When an error can't be recovered inside the JVM (JNI hang, too many reconnect failures, thread leak past threshold), jDCS calls Runtime.halt(-1).

Why not System.exit()? Because System.exit() fires shutdown hooks → @PreDestroy → client.disconnect(). In a fatal-error scenario, disconnect() is very likely the thing that hung. Calling it keeps the JVM alive forever.

Runtime.halt() kills the JVM outright. Same effect as kill -9. The OS reclaims everything — which is more reliable than any "graceful shutdown."

L5 · System level: systemd

The first four layers live inside the JVM. If L4 itself can't run (say, the JVM is wedged just before OOM), the only thing left is the process manager.

jDCS ships a jdcs.service with Restart=always + StartLimitBurst=5:

• Any exit → restart after 10 seconds.
• 5 failures within 5 minutes → mark as failed. Stops config errors from causing a restart storm.

Admit the process might crash. Hand recovery to the OS. That's how industrial gateways usually do it.

Layer-by-layer implementation details, design trade-offs, and "why this layering" — see Architecture_API.md, Chapter 10.

---

Quick start

Requirements

Item	Requirement	Notes
JDK	17 or higher	Mandatory
Maven	3.8+	Build
Serial port	Physical device or simulator	For development, use something like ModbusPal

⚠️ About the JDK version

jDCS is built on digitalpetri/modbus-serial, which requires JDK 17+ as of v2.x. The project code itself also uses JDK 17 features (String.strip(), records, switch expressions). JDK 8 / 11 won't compile or run. This is a hard requirement, not a suggestion.

Three steps to running

Step 1 — configure the serial port

Edit src/main/resources/application-modbus.yml:

modbus:
  serial-port: /dev/ttyUSB0      # Windows: COM8; Linux: /dev/ttyUSB0
  baud-rate: 9600
  parity: NONE
  data-bits: 8
  stop-bits: 1

  # Important: operation-timeout-ms must be > response-timeout-ms
  response-timeout-ms: 2000
  operation-timeout-ms: 5000

  # Leave the rest at defaults
  collection-interval-ms: 30000
  # ...

Step 2 — configure your points

Edit src/main/resources/application-modbus-points.yml:

modbus:
  points:
    - point-id: temperature_hall
      point-name: Hall Temperature
      slave-id: 1
      function-code: 3
      address: 1
      data-type: UINT16
      byte-order: ABCD
      scale: 0.1
      unit: "degC"

Step 3 — build and run

mvn clean package
java -jar target/jdcs-1.0.0.jar

Open http://localhost:8080/ and you'll see live status.

📖 For the full configuration reference, parameter dependencies, and a cheat sheet of common misconfigurations, see Architecture_API.md, Chapter 4.

Pay special attention to the parameter dependencies: operation-timeout-ms > response-timeout-ms and watchdog-idle-threshold-ms > worst-case cycle time. The code doesn't enforce these at startup. Get them wrong and you'll see it at runtime — misjudged hangs, restart loops, or interrupted collection.

---

Stack

Component	Version	Purpose
Spring Boot	3.5.16	Framework, scheduling, config binding
digitalpetri/modbus-serial	2.1.6	The Modbus RTU stack (core)
jSerialComm	2.11.0	Low-level serial I/O (transitive)
Lombok	latest	Boilerplate reduction

On the underlying stack

jDCS builds on digitalpetri/modbus-serial. All Modbus framing, CRC checks, and serial I/O go through it. jDCS handles the connection lifecycle and collection orchestration on top.

There aren't many Modbus libraries in the Java ecosystem. Three reasons we picked digitalpetri/modbus-serial:

1. Modular. The modbus-serial artifact depends only on jSerialComm. It doesn't drag in Netty (that's only for modbus-tcp). For an edge device, that matters.
2. Actively maintained. Frequent releases, quick issue responses.
3. The known bug is fixed. The timeout memory leak (Issue #124) was fixed in v2.1.2. v2.1.6 is stable.

For the stack's limits and design assumptions (like jSerialComm's default infinite blocking reads/writes and write timeouts only working on Windows), see Architecture_API.md, Chapter 14.

---

Extending: plugging in your data sink

jDCS ships with one data sink that just logs. To plug in your own storage, reporting, or forwarding, implement one interface:

public interface ModbusDataHandler {
    /**
     * Framework guarantee: any exception thrown here is caught and logged.
     * The collection pipeline is unaffected.
     */
    void handle(ModbusPoint point);
}

Example: MQTT sink

@Component
public class MqttDataHandler implements ModbusDataHandler {

    private final MqttClient mqttClient;

    public MqttDataHandler(MqttClient mqttClient) {
        this.mqttClient = mqttClient;
    }

    @Override
    public void handle(ModbusPoint point) {
        if (!Boolean.TRUE.equals(point.getSuccess())) {
            return;    // Skip failed reads
        }
        String topic = "factory/" + point.getPointId();
        String payload = String.format("{\"value\":%s,\"unit\":\"%s\",\"ts\":%d}",
                point.getValue(), point.getUnit(), point.getTimestamp());
        mqttClient.publish(topic, payload.getBytes());
    }
}

Framework guarantee: any exception thrown from handle is caught and logged. The Modbus collection pipeline is unaffected. Your MQTT broker hiccups, your database times out, your HTTP call returns 502 — none of it makes the Modbus device look broken.

jDCS has three extension points: the data sink (this chapter), the point source (config → database), and the log policy (console → rolling files). Full details in Architecture_API.md, Chapter 7.

---

Going deeper

This README is the front door. The full architecture and API reference lives in:

📖 Architecture_API.md

Contents:

Chapter	Topic
2	Overall architecture and layering
3	Collection pipeline and exception isolation
4	Configuration reference (parameter dependencies + common misconfigurations)
5	Data type mapping (including InHand gateway compatibility)
6	Byte order reference
7	API reference
8	Field validity contracts
10	The five-layer fault fallback (the full robustness design)
11	Production usage discipline
12	Known limits and trade-offs
13	Health check and status page
15	Production deployment (systemd)

Two chapters are especially worth reading:

• Chapter 10 · Fault fallback chain — the key to understanding jDCS's robustness design.
• Chapter 11 · Production usage discipline — the pre-launch checklist.

---

Deploying to production

systemd (recommended)

The repo ships a one-shot deploy script and a systemd unit:

# Build
mvn clean package

# Deploy (needs root)
sudo bash install.sh

# Verify
systemctl status jdcs
journalctl -u jdcs -f
curl http://localhost:8080/health

install.sh handles: creating the jdcs user and adding it to dialout, setting up directories, copying the jar, registering the service, enabling autostart.

Key JVM flags

jdcs.service already includes:

-Xms256m -Xmx512m                            # Collection framework uses very little memory; 512MB is plenty
-XX:+HeapDumpOnOutOfMemoryError              # Preserve the scene on OOM
-XX:HeapDumpPath=/opt/jdcs/dumps
-XX:+ExitOnOutOfMemoryError                  # Exit on OOM, let systemd restart

Full deployment guide, log management, and common ops commands: Architecture_API.md, Chapter 15.

---

Tests

Three kinds of tests:

Test class	Form	What it covers	Needs hardware?
TestModbusPointParser	main() self-test	159 assertions: type mapping / byte order / odd register handling / scaling / lenient API / entity filling / exception tolerance	No
TestModbusBatchReadPlanner	JUnit 5	14 cases: grouping, merging, bit-type isolation, protocol limit, address gaps	No
TestModbusRead	@SpringBootTest	Real serial read (integration test)	Yes

Offline run:

java -cp "out:$(deps)" com.ty.jdcs.test.TestModbusPointParser
# Output:
# [PASS] INT16 parse: 100
# [PASS] FLOAT32 ABCD parse: 25.5
# ...
# Total: 159, passed: 159, failed: 0

Exit code is 1 on failure — CI-friendly.

---

License

Apache License 2.0

Use it, modify it, redistribute it — commercial or personal, doesn't matter. The only requirement is keeping the copyright notice and license file.

---

jDCS — Java Data Collector Service Get the collection core right. Leave the rest to you.
