Technical Design Document

lmdb-text-env-arm64-debug-link.md

Description

A Debug iOS simulator build of edge-react-gui carrying all four large native wallet libraries (react-native-pirate-wallet, react-native-zcash, react-native-monero, react-native-zano) fails to link:

ld: warning: symbols in __TEXT,text_env (libmonero-module.a[arm64][2](monero-module.o))
    have unwind information, but it's not a code section
    (missing 'regular,pure_instructions' section flag)
ld: fixup error (kind=arm64_b26) at '__ZN5boost6chrono12system_clock3nowEv'+0x450994
    from libmonero-module.a[arm64][2](monero-module.o), B/BL out of range
    (displacement=177426652, max is +/-128MB), from 0x00473394 to 0x0ADA8470 ('_mdb_mutex_failed')

The LMDB vendored inside monero puts about 50 rarely used environment functions in a private section through its ESECT macro, which on Apple expands to __attribute__((section("__TEXT,text_env"))). That two-field Mach-O specifier leaves S_ATTR_PURE_INSTRUCTIONS unset, so ld does not count the section as code: it sorts it past every real code section (173MB into a 190MB __TEXT) and will not plant a branch island for a call that crosses the +/-128MB B/BL reach. Release links only because its __TEXT is about 50MB smaller.

This spells the section out in full, so text_env carries the same flags as __text and ld sorts it directly after __text. The section survives, so upstream's grouping of cold environment functions still holds.

Two supporting pieces come with it:

• An anchor assertion. String.replace no-ops when the pattern misses, so a drifted monero would silently produce an unpatched module and a link that fails again for a reason nobody would connect to this change. The throw turns that into a build failure naming the patch, matching the existing rpc.cpp patch in the same file.
• A patch revision in the monero.clone cacheTag (1-esect). The tag does not hash the patch text, so on a cache hit monero.clone is skipped outright and the tree keeps whatever the previous run left in it; bumping the leading revision digit is what makes an edited patch rebuild.

Asana: Monero: fix iOS debug build linking

Testing

All measurements on 2026-09-07 against edge-react-gui at f15eb640 (branch agent/1214721783909451, react-native-pirate-wallet 0.3.4), untrimmed (zcash, monero and zano all autolinked), on an iOS 18.6 simulator.

1. Compile probe for arm64-apple-ios-simulator: the two-field section spelling gives section flags 0x00000400; the four-field spelling gives 0x80000400, adding S_ATTR_PURE_INSTRUCTIONS, which is what __text carries.
2. otool -l over the rebuilt MoneroModule.xcframework: text_env carries 0x80000400 on ios-arm64 and on both simulator architectures. The published 0.4.2 artifact carries 0x00000000.
3. Two Debug simulator links over the same DerivedData, differing only in which framework sat in node_modules/react-native-monero/ios/:
   • published 0.4.2: ** BUILD FAILED ** with the arm64_b26 error above, reproducing the report exactly.
   • rebuilt: ** BUILD SUCCEEDED **, zero arm64_b26 lines and zero text_env lines. text_env moved from 0x00ada62e0 to 0x005f6e5b8, directly after __text, so no branch island is needed at all.
4. The linked app installed, launched and rendered its wallet list with Monero, Zano and the rest of the plugins live.
5. On edge-rjqa3, wallet "My Monero" synced to 0.001891391795 XMR ($0.97).
6. From that wallet, 0.000484 XMR (fee 0.00017752 XMR) to "My Monero 3" reached the "Transaction Success" confirmation, so createTransaction and broadcastTransaction both ran against the rebuilt module.

verify-repo.sh passes (changelog, prepare, eslint).

Not done here: the version commit and publish (this repo cuts the version as its own commit at publish time), then the edge-react-gui pin bump from 0.5.0 to the new version. That bump is a pin change only: develop and edge-currency-accountbased master already consume 0.5.0.

Cases 4-6 above ran the pirate branch's 0.4.2 JavaScript against the rebuilt native module. That is safe because the compiled MoneroEngine.broadcastTx in that branch's node_modules discards broadcastTransaction's return value, the only surface 0.5.0 changed.

Test evidence

5a2411f Flag lmdb text_env as code so Debug iOS links

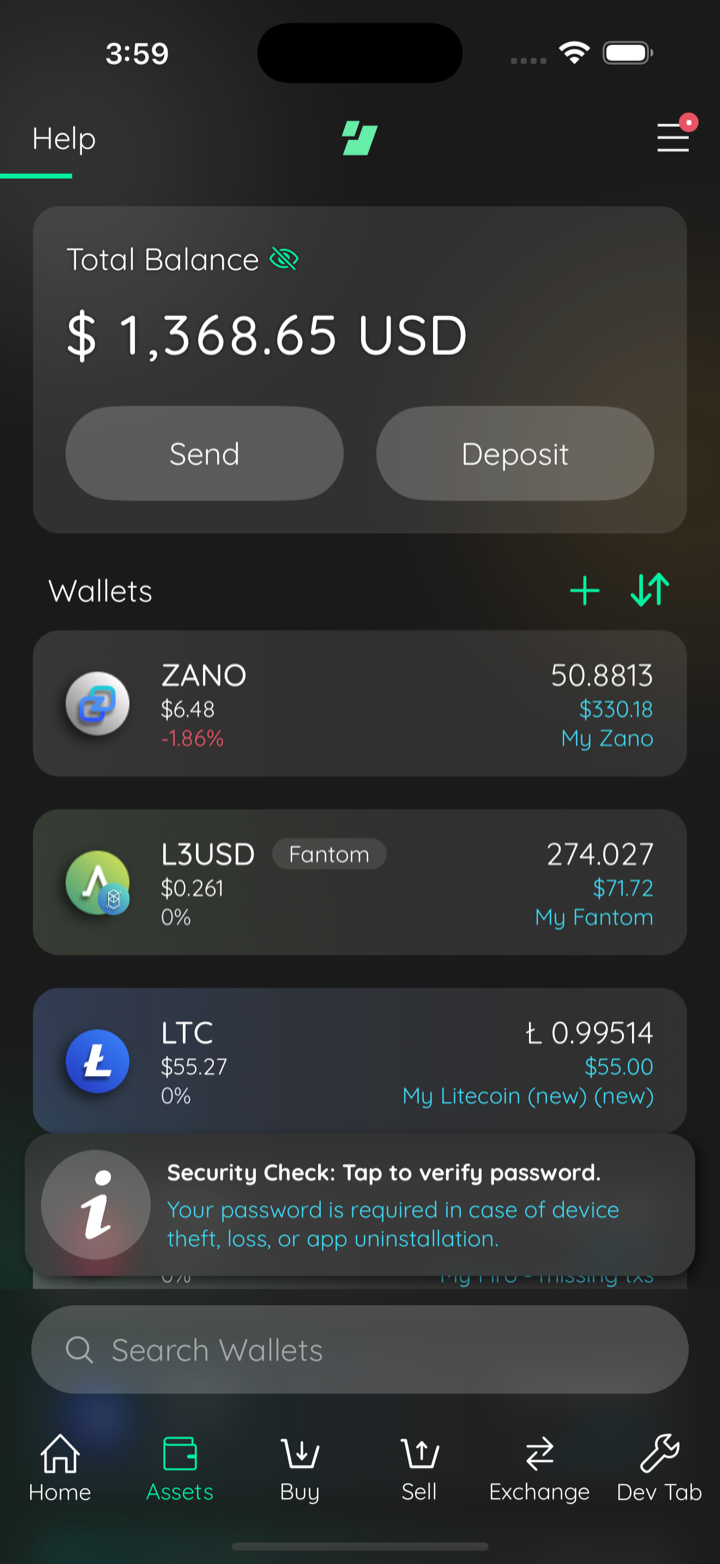

untrimmed debug build launched

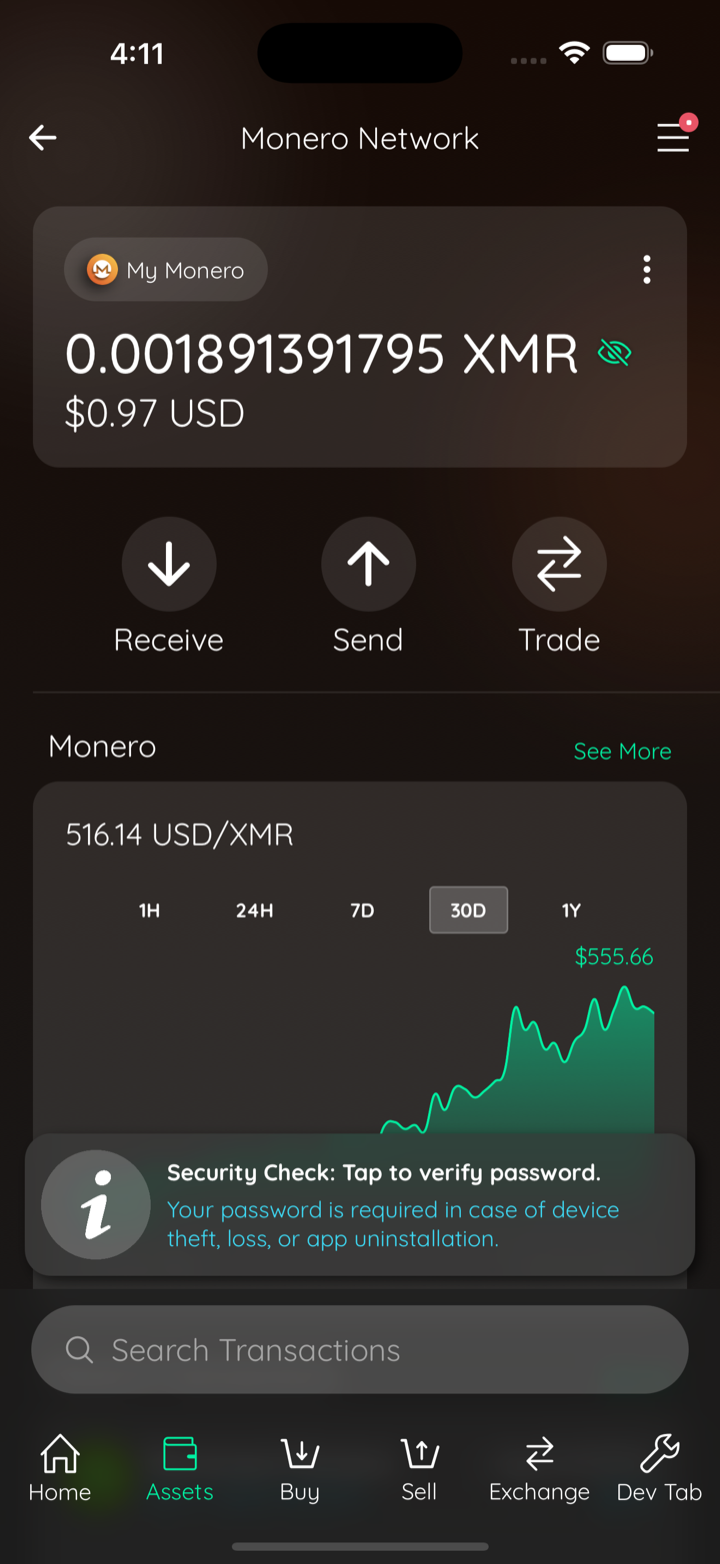

xmr wallet synced

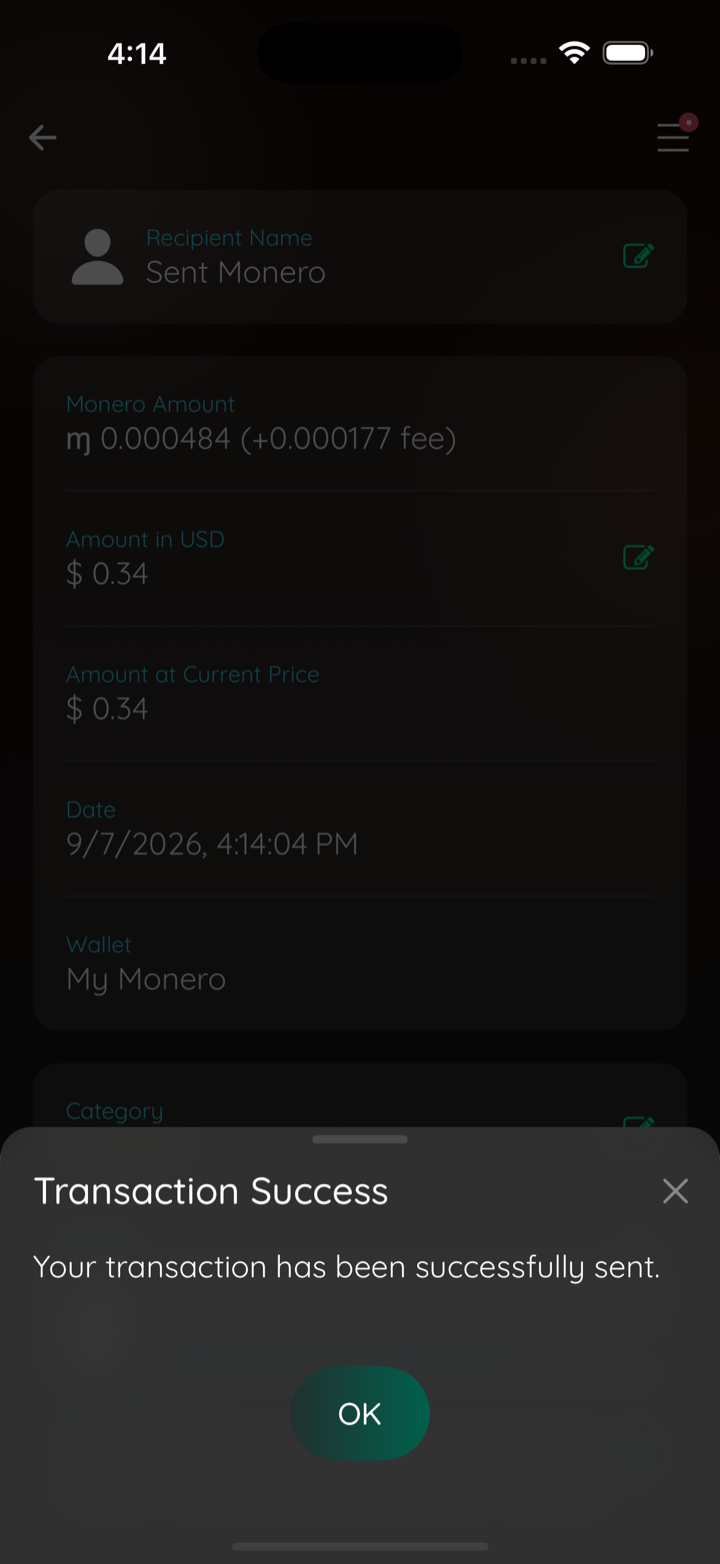

xmr send transaction success

---

Note

Medium Risk
Changes native monero/LMDB compile output and iOS linking layout; wrong or stale patches could break builds or regress Debug links, though runtime LMDB semantics are unchanged.

Overview
Fixes Debug iOS simulator link failures (arm64_b26 / _mdb_mutex_failed) when the app bundles several large native wallet libraries. Vendored LMDB’s Apple ESECT macro used a two-field Mach-O section name, so __TEXT,text_env was not treated as code and landed ~173MB into __TEXT, beyond arm64 B/BL reach.

During monero.clone in scripts/libraries/lwsf.ts, the patch rewrites mdb.c to use a full section specifier (regular,pure_instructions), matching __text so the linker lays text_env with other code. A failed anchor check aborts the build if upstream mdb.c drifts, and moneroPatchTag is appended to the clone cacheTag so edited patches are not served from a stale cached tree.

CHANGELOG records the fix; src/docs/lmdb-text-env-arm64-debug-link.md documents problem, design, and verification. No JS or wallet API changes; rebuilt MoneroModule.xcframework only.

^{Reviewed by Cursor Bugbot for commit 3e86c2c. Bugbot is set up for automated code reviews on this repo. Configure here.}

[peachbits]

The mechanism checks out: the anchor matches the pinned mdb.c exactly once, all 52 ESECT symbols are functions so pure_instructions is accurate, and the moneroPatchTag bump does force lwsf.build.* to recompile through the dirty-dep cascade in scripts/utils/tasks.ts. No correctness findings. The four notes below are housekeeping.

[peachbits]

housekeeping items worth addressing before merging

[j0ntz]

All four housekeeping threads are fixed and resolved: the Related row now points at the merge commit of accountbased#1055 with the anchor that exists there, both code permalinks are repo-relative, the arm64_b26 link label is closed, and the cacheTag comment states the real mechanism with the tag bumped to 1-esect. verify-repo passed on the branch (changelog, prepare, eslint).
