Technical Design Document

robinhood-chain.md

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

none

Description

Adds Robinhood Chain (robinhood, EVM chain 4663) as a currency plugin. It is an Arbitrum Nitro L2 with ETH as its gas token, so the plugin is configuration only: arbitrumRollupParams selects the existing NodeInterface L1-component fee path, and no engine code changes.

Asana: https://app.asana.com/1/9976422036640/project/1213843652804305/task/1217382370104887

Three choices worth a reviewer's attention, all covered in the design doc:

History comes from Blockscout, not Etherscan. Etherscan V2 does not serve chain 4663 (Missing or unsupported chainid parameter; 4663 is absent from its /v2/chainlist). Routescan returns chain not supported, and HoodScan has no Etherscan-compatible API. Blockscout is the only source that answers, and it has no gastracker or proxy module, hence gastrackerSupport: false and the RPC adapter declared first so nonce and block-height lookups do not hit the missing proxy module.

Built-in token addresses come from the canonical bridge, not a token search. This chain's explorer lists imitations that outrank the real contracts by holder count, including a 30,726-holder "USDC" named Universal Stable Digital Coin. Each bridged address was derived by calling calculateL2TokenAddress(l1Token) on the L2 Gateway Router from Robinhood's published contract list. USDG, CASHCAT and PONS are issued natively rather than bridged. USDG was confirmed as a verified ERC-1967 proxy whose implementation is named USDG. CASHCAT (0x020bfC65…) and PONS (0x39dBED3a…) are each corroborated by more than one swap provider settling to that address, ChangeNow, Swapuz, LetsExchange and Rango for CASHCAT and Swapuz and Rango for PONS, and then confirmed against the contract itself: name() "Cash Cat" / "Pons", symbol() CASHCAT / PONS, decimals() 18 for both, with deployed bytecode present. A single provider catalogue is not sufficient on its own, since a provider can list a wrong address as easily as an explorer can.

addressQueryLookbackBlocks is 1250, not the 480 copied from Arbitrum. Blocks arrive about every 96ms here (measured: 626 blocks in 60.2s), so 480 blocks is a 46-second re-scan overlap rather than the ~2 minutes the constant means on other chains.

No ethBalCheckerContract: none of the five balance-checker addresses used across Edge's EVM plugins has code on this chain. Multicall3 is deployed at the canonical address but implements a different ABI, so it is not a substitute.

Testing. Full npm test and tsc pass; test/builtinTokens.test.ts covers all seven token IDs, deriving each from its entry and asserting the key matches. Both configured RPC servers agree on eth_chainId (0x1237), block height, balance and nonce, and the NodeInterface call at 0x…C8 returns a base fee, confirming the Arbitrum fee path applies. The second server started as rpc.arrowrpc.com; a pre-merge review found it dead (HTTP 530, Cloudflare error 1033) and it was replaced with robinhood-rpc.publicnode.com, re-verified through the plugin's own request shape and asRpcResultString cleaner on all four methods plus gasEstimateL1Component. Driven in-app on the iOS simulator with this branch linked in: the wallet creates, and importing a seed with real on-chain history renders 0.000000019866 ETH, matching eth_getBalance for that address.

Transaction history was verified under a forced response, since the live endpoint rate-limits this host. The public Blockscout /api returns HTTP 429 after a handful of requests from one egress address and recovers after about three minutes, and the simulator's own polling shares that budget. Its v2 API has a separate quota, which is where the address's two real rows came from. fetchGetEtherscan was then temporarily stubbed to return those rows, leaving the cleaner, processEvmScanTransaction and the list component untouched, and both rendered correctly: "Sent Ethereum -Ξ 0.011497, Jul 15 2026" and "Received Ethereum +Ξ 0, Aug 1 2026", matching the chain exactly (21000 gas at 56,326,000 wei on the outgoing transfer). The stub was reverted; screenshot attached below and marked as hack-forced.

HTTP 429 already raises RateLimitError and retries with exponential backoff, so no handling is missing here. A Blockscout API key would remove the ceiling with no code change, since EvmScanAdapter already appends &apikey=. No Edge-held provider key covers chain 4663: Etherscan V2 does not serve it, the dRPC key is deactivated account-wide, nowNodes and quiknode have no endpoint, and Alchemy supports the network but answers ROBINHOOD_MAINNET is not enabled for this app.

Follow-ups, none blocking this PR:

• ROBINHOOD_INIT needs adding to the deployed env.json, or the plugin ships disabled.
• Currency icons at content.edge.app/currencyIconsV3/robinhood/ (robinhood.png, chain_robinhood.png) do not exist yet, so wallets render a text placeholder.
• Edge's rates server has no entry for robinhood, so ETH on the chain prices at $0 throughout the app.

Update: send is now verified. The claim that no swap provider quotes chain 4663 was wrong: it was inferred from the chain's absence in Edge's own provider maps rather than checked against a provider API. A sweep of the provider discovery endpoints found six advertising the chain; edge-exchange-plugins#483 maps four of them. With that branch served in, a swap from Sonic funded a Robinhood Chain wallet with 0.006248511112300593 ETH, and a 0.001 ETH send from it is transaction 0x70e4950b5991c9419eff70ea2478c7ae55c5c58adcc3da237d5889394f8fdf62, success in block 35308086. Send and fee estimation on this chain are exercised, not deferred. The design doc's phase history and retrospective are updated accordingly.

---

Note

Medium Risk
New user-facing chain and seven curated token contracts on an explorer full of impersonators; correctness depends on config and third-party RPC/Blockscout availability, though no shared engine logic changes.

Overview
Adds Robinhood Chain support as a new EVM currency plugin (pluginId robinhood, chain ID 4663, native ETH gas) by wiring existing EthereumEngine behavior through a new robinhoodInfo.ts and registering it in ethereumInfos.ts.

The network config targets this chain’s quirks: RPC first, then Blockscout for history (Etherscan V2 does not cover 4663), gastrackerSupport: false, arbitrumRollupParams for Nitro L1 fee estimation, a 1250-block history lookback (~2 minutes at ~96ms blocks), and a lowered 0.01 gwei minPriorityFee. Built-in tokens are USDC, USDT, USDG, WBTC, WETH, CASHCAT, and PONS, with bridged addresses from the gateway router and chain-native ones corroborated off-provider settlement addresses—not explorer search.

Also adds an Unreleased CHANGELOG entry and a long src/docs/robinhood-chain.md design note covering cross-repo GUI, swap, and rates follow-ups.

^{Reviewed by Cursor Bugbot for commit ff6b61a. Bugbot is set up for automated code reviews on this repo. Configure here.}

[j0ntz]

📸 Test evidence

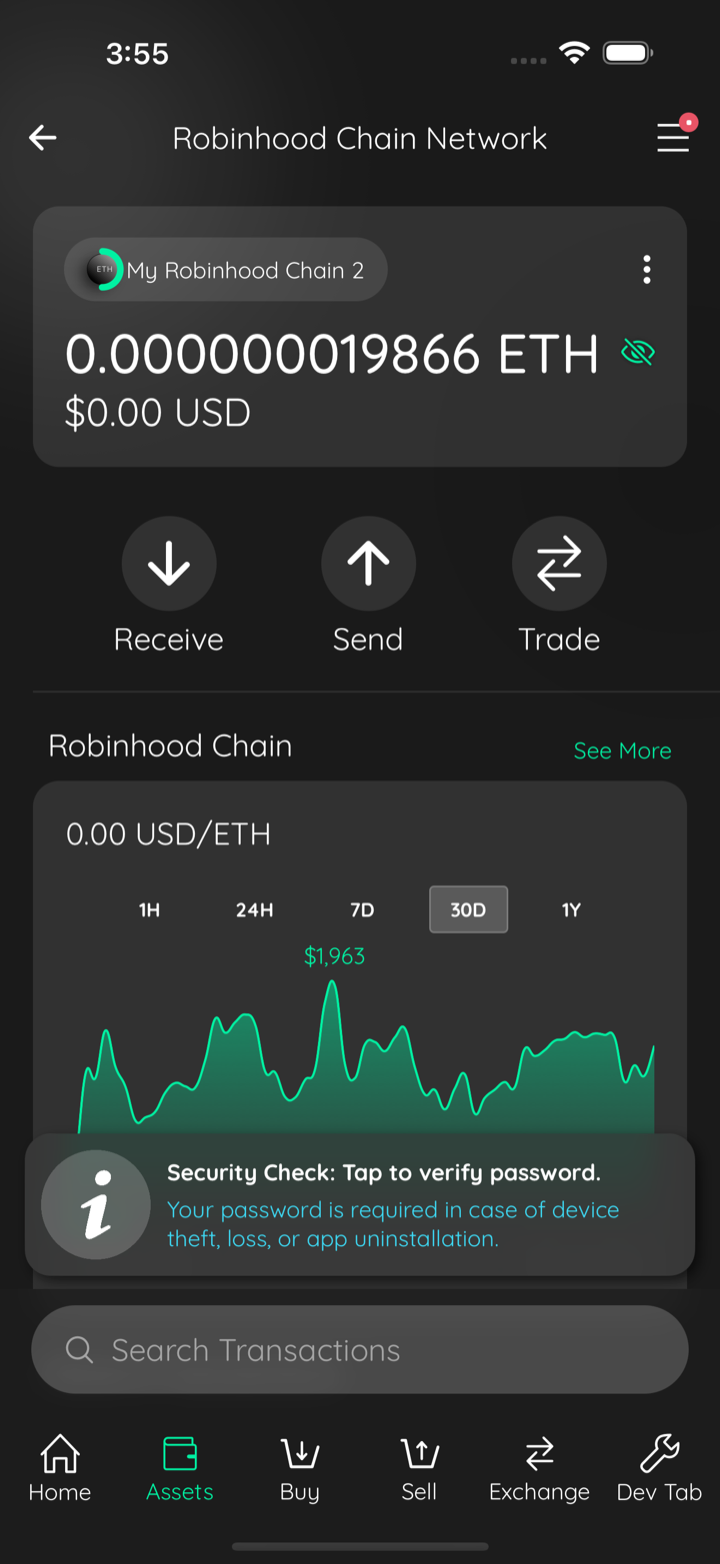

live balance from chain

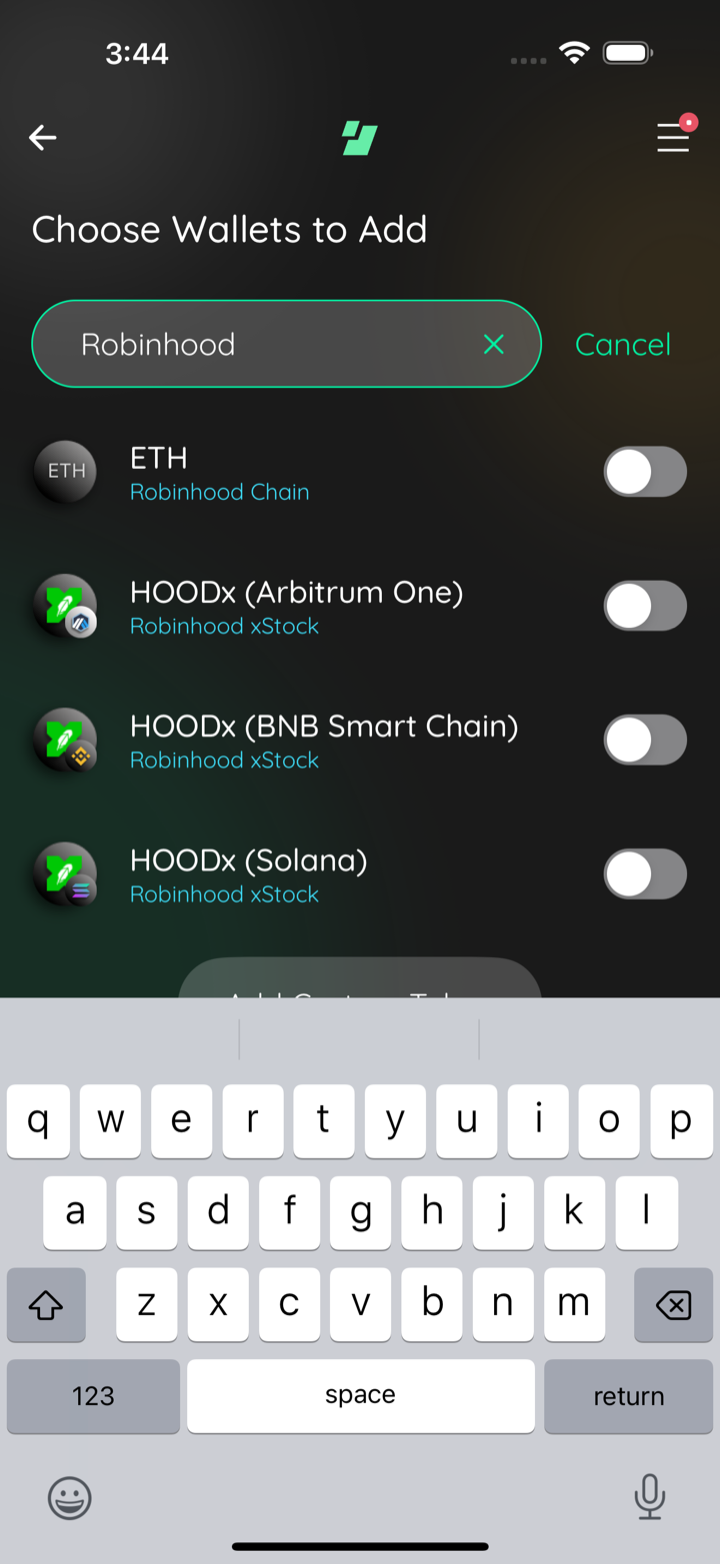

robinhood in create wallet

Captured by the agent's in-app test run (build-and-test).

[chatgpt-codex-connector]

You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard.

[j0ntz]

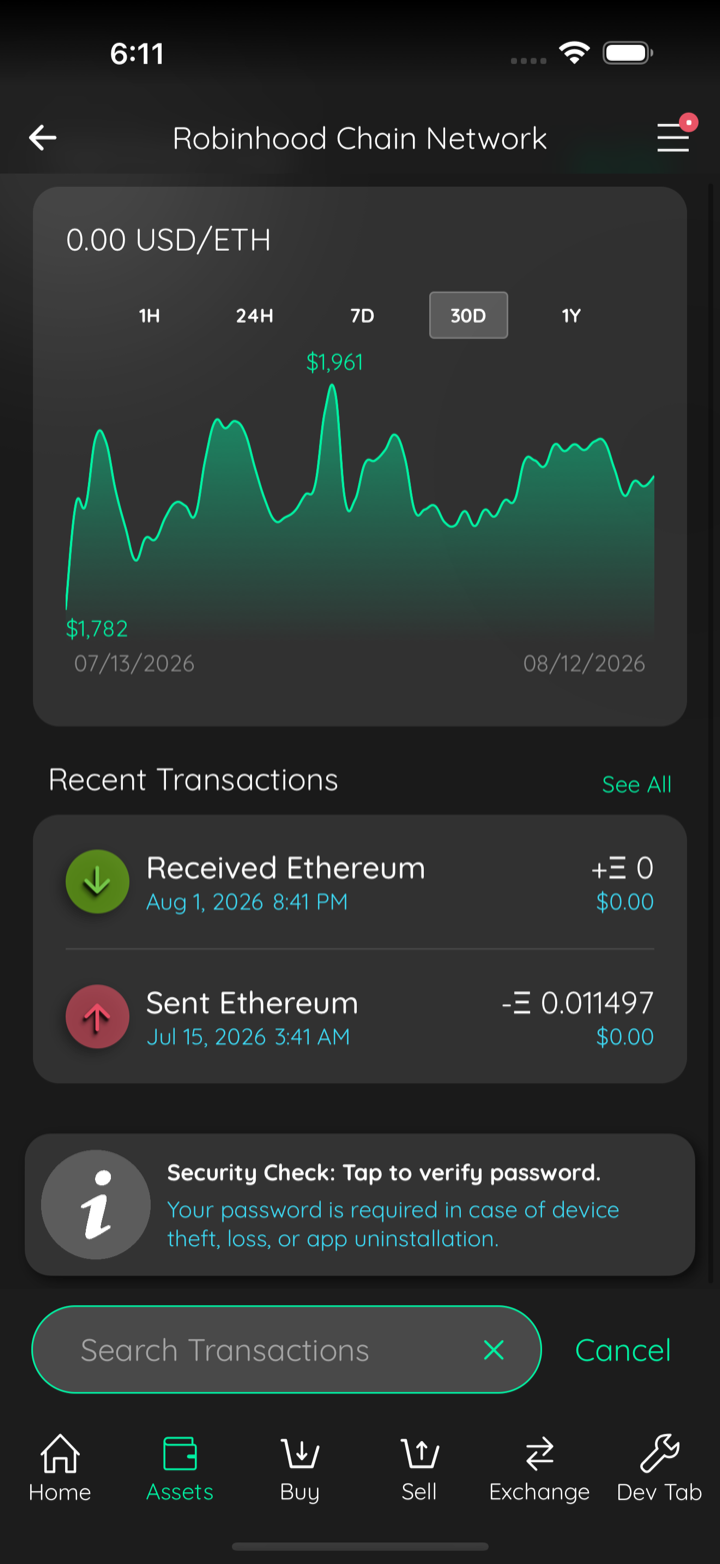

📸🪓 Transaction history (hack-forced)

🪓 Hack-forced evidence: EvmScanAdapter.fetchGetEtherscan temporarily stubbed to return two real txlist rows captured from this chain's Blockscout v2 API, because the free tier 429s this host; the cleaner, processEvmScanTransaction and the list component all ran unmodified. Stub reverted, git status clean. Temporary uncommitted edit, reverted before commit; the marked frames prove the rendering, not the trigger.

🪓 HACK-FORCED: tx list

Captured by the agent's in-app test run (build-and-test).
