diagram-sync

Keep architecture diagrams synchronized with source code.

diagram-sync is a CLI tool that automatically generates images from diagram source files. Drop it into any repo and run npx diagram-sync — it finds every supported diagram file, renders it to an image, and mirrors the output under a diagrams/ folder. No config required.

npx diagram-sync

The Problem

Engineering teams update code but forget to re-export architecture diagrams. The result is stale documentation — READMEs, wikis, and onboarding docs that no longer reflect reality.

diagram-sync eliminates the manual export step entirely. You edit the diagram source file. It generates the image automatically — locally or in CI/CD.

Honest note: This tool removes export friction. It does not force developers to keep source diagrams accurate. That is a people problem, not a tooling problem.

Install

# one-off, no install required
npx diagram-sync

# or install globally
npm install -g diagram-sync

# or as a dev dependency
npm install --save-dev diagram-sync

Quick Start

Add a supported diagram source file anywhere in your repo
Run npx diagram-sync from the project root
Find the generated image in diagrams/ mirroring the source path

Source

Generated

docs/
└── providers/
    ├── plantuml/
    │   └── system.puml
    └── mermaid/
        └── auth.mmd

diagrams/
└── docs/
    └── providers/
        ├── plantuml/
        │   └── system.svg
        └── mermaid/
            └── auth.svg

Once committed, the generated images are plain files in your repository — embed them in READMEs, wikis, internal docs, or link to them from anywhere on the internet via their raw GitHub URL.

How It Works

Recursively scans your repo for diagram source files
Skips node_modules, .git, dist, build, diagrams
Derives the output path from the source file location — no input/output directories to configure
Generates images using the installed diagram tool for each provider — defaults to SVG, configurable via --format flag or config file

Supported Providers

diagram-sync supports any diagram source that is committed to Git, maintained as a file, and can be converted to an image via a CLI — regardless of whether it was created by hand, a GUI tool, or AI.

Provider	Extensions	Guide
PlantUML	`.puml`, `.plantuml`	Setup & CI/CD
Mermaid	`.mmd`, `.mermaid`	Setup & CI/CD
Graphviz	`.dot`, `.gv`	Setup & CI/CD
Draw.io	`.drawio`, `.dio`	Setup & CI/CD
D2	`.d2`	Setup & CI/CD
Excalidraw	`.excalidraw`	Setup & CI/CD
BPMN	`.bpmn`	Setup & CI/CD

Usage Options

1. One-off local generation

npx diagram-sync

2. npm script

"scripts": {
  "diagrams": "npx diagram-sync"
}

npm run diagrams

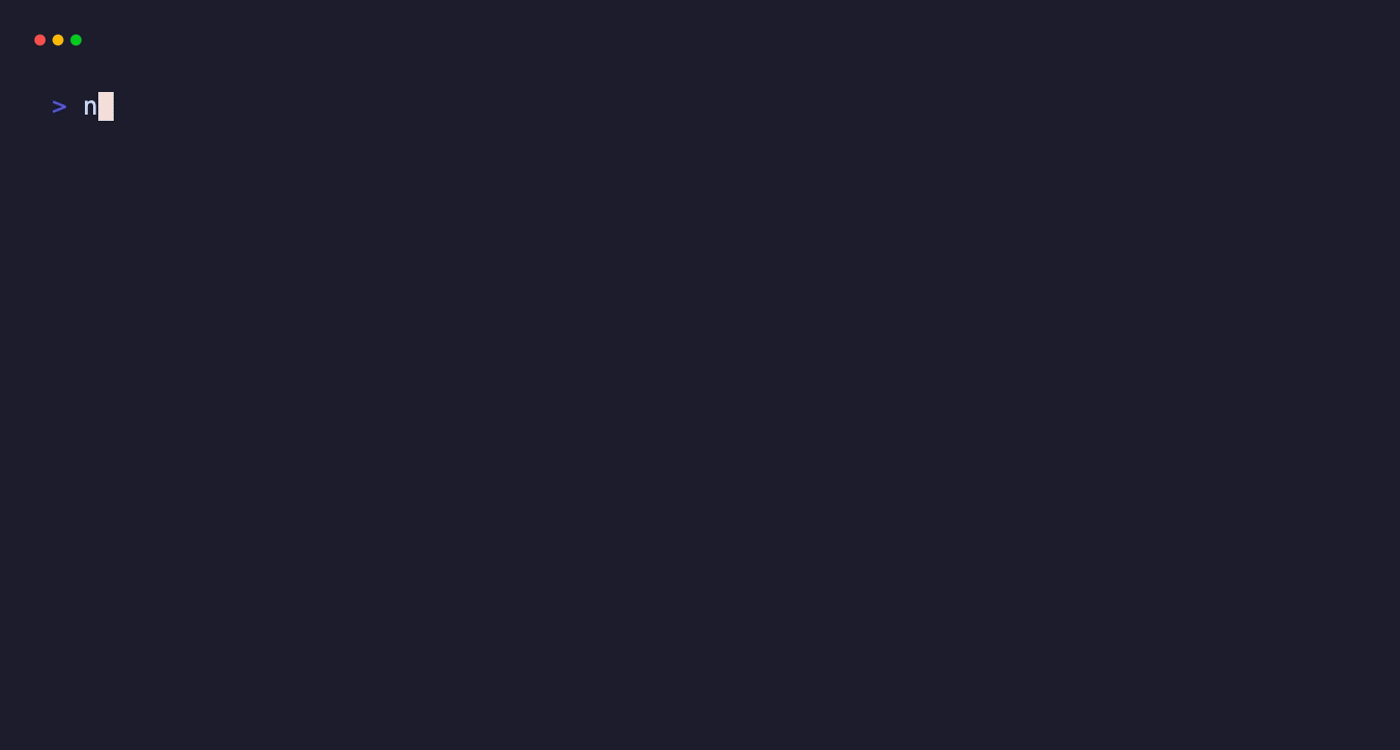

3. Regenerate specific files only

Pass explicit paths — skips discovery entirely. Used by CI to regenerate only the files changed in a push or PR.

npx diagram-sync --files docs/providers/d2/network.d2 docs/providers/plantuml/system.puml

4. Regenerate only locally changed files

Processes only files modified since the last commit (git diff HEAD + untracked). Useful locally to avoid regenerating every diagram in a large repo.

npx diagram-sync --changed

5. Config file

Config is optional — no config file needed to get started. Add diagram-sync.config.json to your project root to control formats per provider or scope which providers run.

{
  "format": "svg",
  "jobs": [
    {
      "name": "architecture",
      "type": "plantuml",
      "format": "png",
      "background": "#FFFFFF"
    },
    {
      "name": "flows",
      "type": "mermaid"
    }
  ]
}

npx diagram-sync --config diagram-sync.config.json

Override format at runtime without a config file:

npx diagram-sync --format svg

Format resolution order: --format flag → job format → global format → default svg.

Job Options

Field	Type	Description
`name`	`string`	Label for the job (used in logs)
`type`	`string`	Diagram provider (`plantuml`, `mermaid`, `graphviz`, `drawio`, `d2`, `excalidraw`, `bpmn`)
`format`	`string`	Output format for this job (e.g. `png`, `svg`, `pdf`) — overrides global format
`background`	`string`	Background color for PlantUML diagrams — defaults to `#FFFFFF`. Accepts hex codes or named colors (e.g. `transparent`, `#F5F5F5`)

6. CI/CD

Generates a preview on every PR and commits images to main on merge.

Remove the install steps and path filters for providers you don't use — most teams only need 1–2.

name: Generate and Commit Diagrams

# Remove path entries for providers you don't use.
# The workflow only triggers when a matching source file changes.
on:
  pull_request:
    paths:
      # PlantUML — remove if not using .puml / .plantuml files
      - '**/*.puml'
      - '**/*.plantuml'
      # Mermaid — remove if not using .mmd / .mermaid files
      - '**/*.mmd'
      - '**/*.mermaid'
      # Graphviz — remove if not using .dot / .gv files
      - '**/*.dot'
      - '**/*.gv'
      # Draw.io — remove if not using .drawio / .dio files
      - '**/*.drawio'
      - '**/*.dio'
      # D2 — remove if not using .d2 files
      - '**/*.d2'
      # Excalidraw — remove if not using .excalidraw files
      - '**/*.excalidraw'
      # BPMN — remove if not using .bpmn files
      - '**/*.bpmn'
  push:
    branches: [main]
    paths:
      # PlantUML — remove if not using .puml / .plantuml files
      - '**/*.puml'
      - '**/*.plantuml'
      # Mermaid — remove if not using .mmd / .mermaid files
      - '**/*.mmd'
      - '**/*.mermaid'
      # Graphviz — remove if not using .dot / .gv files
      - '**/*.dot'
      - '**/*.gv'
      # Draw.io — remove if not using .drawio / .dio files
      - '**/*.drawio'
      - '**/*.dio'
      # D2 — remove if not using .d2 files
      - '**/*.d2'
      # Excalidraw — remove if not using .excalidraw files
      - '**/*.excalidraw'
      # BPMN — remove if not using .bpmn files
      - '**/*.bpmn'
  workflow_dispatch:

jobs:
  preview:
    name: Generate Preview
    runs-on: ubuntu-latest
    if: github.event_name == 'pull_request'

    steps:
      - uses: actions/checkout@v5
        with:
          # Full history required so git diff can resolve base refs for --files filtering.
          fetch-depth: 0

      - name: Setup Node
        uses: actions/setup-node@v5
        with:
          node-version: '20'

      # --- PlantUML — remove if not using .puml / .plantuml files ---
      - name: Install PlantUML
        run: |
          sudo apt-get update -q
          sudo apt-get install -y --no-install-recommends default-jre-headless plantuml

      # --- Mermaid — remove if not using .mmd / .mermaid files ---
      - name: Install Mermaid CLI
        run: npm install -g @mermaid-js/mermaid-cli

      # --- Graphviz — remove if not using .dot / .gv files ---
      - name: Install Graphviz
        run: |
          sudo apt-get update -q
          sudo apt-get install -y graphviz

      # --- Draw.io — remove if not using .drawio / .dio files ---
      - name: Install Draw.io
        run: |
          DRAWIO_VERSION=$(curl -s https://api.github.com/repos/jgraph/drawio-desktop/releases/latest | jq -r '.tag_name | ltrimstr("v")')
          wget -q "https://github.com/jgraph/drawio-desktop/releases/download/v${DRAWIO_VERSION}/drawio-amd64-${DRAWIO_VERSION}.deb" -O drawio.deb
          sudo apt-get install -y ./drawio.deb xvfb

      # --- D2 — remove if not using .d2 files ---
      - name: Install D2
        run: curl -fsSL https://d2lang.com/install.sh | sh

      # --- Excalidraw — remove if not using .excalidraw files ---
      - name: Install Excalidraw CLI
        run: npm install -g @swiftlysingh/excalidraw-cli

      # --- BPMN — remove if not using .bpmn files ---
      - name: Install BPMN CLI
        run: |
          npm install -g bpmn-to-image
          sed -i "s/headless: 'new'/headless: 'new', args: ['--no-sandbox', '--disable-setuid-sandbox']/" $(npm root -g)/bpmn-to-image/index.js

      - name: Install diagram-sync
        run: npm install -g diagram-sync

      - name: Generate changed diagrams
        run: |
          CHANGED=$(git diff --name-only origin/${{ github.base_ref }}...HEAD | grep -E '\.(puml|plantuml|mmd|mermaid|dot|gv|drawio|dio|d2|excalidraw|bpmn)$' || true)
          if [ -n "$CHANGED" ]; then
            diagram-sync --files $CHANGED
          else
            echo "No diagram files changed."
          fi
        # add --format png or --format pdf after --files $CHANGED to override the default svg output

      - name: Upload diagram previews
        uses: actions/upload-artifact@v4
        with:
          name: diagrams-preview
          path: diagrams/

  commit:
    name: Generate and Commit
    runs-on: ubuntu-latest
    if: github.event_name == 'push' || github.event_name == 'workflow_dispatch'
    permissions:
      contents: write

    steps:
      - uses: actions/checkout@v5
        with:
          # GITHUB_TOKEN with contents: write is sufficient when the main branch is unprotected.
          # If your branch is protected and you need to bypass protection rules, replace with a PAT:
          #   token: ${{ secrets.PAT_TOKEN }}
          token: ${{ secrets.GITHUB_TOKEN }}
          # Full history required so git diff can resolve base refs for --files filtering.
          fetch-depth: 0

      - name: Setup Node
        uses: actions/setup-node@v5
        with:
          node-version: '20'

      # --- PlantUML — remove if not using .puml / .plantuml files ---
      - name: Install PlantUML
        run: |
          sudo apt-get update -q
          sudo apt-get install -y --no-install-recommends default-jre-headless plantuml

      # --- Mermaid — remove if not using .mmd / .mermaid files ---
      - name: Install Mermaid CLI
        run: npm install -g @mermaid-js/mermaid-cli

      # --- Graphviz — remove if not using .dot / .gv files ---
      - name: Install Graphviz
        run: |
          sudo apt-get update -q
          sudo apt-get install -y graphviz

      # --- Draw.io — remove if not using .drawio / .dio files ---
      - name: Install Draw.io
        run: |
          DRAWIO_VERSION=$(curl -s https://api.github.com/repos/jgraph/drawio-desktop/releases/latest | jq -r '.tag_name | ltrimstr("v")')
          wget -q "https://github.com/jgraph/drawio-desktop/releases/download/v${DRAWIO_VERSION}/drawio-amd64-${DRAWIO_VERSION}.deb" -O drawio.deb
          sudo apt-get install -y ./drawio.deb xvfb

      # --- D2 — remove if not using .d2 files ---
      - name: Install D2
        run: curl -fsSL https://d2lang.com/install.sh | sh

      # --- Excalidraw — remove if not using .excalidraw files ---
      - name: Install Excalidraw CLI
        run: npm install -g @swiftlysingh/excalidraw-cli

      # --- BPMN — remove if not using .bpmn files ---
      - name: Install BPMN CLI
        run: |
          npm install -g bpmn-to-image
          sed -i "s/headless: 'new'/headless: 'new', args: ['--no-sandbox', '--disable-setuid-sandbox']/" $(npm root -g)/bpmn-to-image/index.js

      - name: Install diagram-sync
        run: npm install -g diagram-sync

      - name: Generate changed diagrams
        run: |
          if [ "${{ github.event_name }}" = "workflow_dispatch" ]; then
            diagram-sync
          else
            CHANGED=$(git diff --name-only ${{ github.event.before }} ${{ github.sha }} | grep -E '\.(puml|plantuml|mmd|mermaid|dot|gv|drawio|dio|d2|excalidraw|bpmn)$' || true)
            if [ -n "$CHANGED" ]; then
              diagram-sync --files $CHANGED
            else
              echo "No diagram files changed."
            fi
          fi
        # add --format png or --format pdf after --files $CHANGED to override the default svg output

      - name: Commit generated diagrams
        run: |
          git config user.name "github-actions[bot]"
          git config user.email "github-actions[bot]@users.noreply.github.com"
          git add diagrams/
          if git diff --staged --quiet; then
            echo "No diagram changes to commit."
          else
            git commit -m "chore: auto-export diagrams [skip ci]"
            git push
          fi

No secrets setup required — GITHUB_TOKEN with contents: write works out of the box for unprotected branches. If your main branch is protected and you need to push through branch protection rules, replace secrets.GITHUB_TOKEN with a PAT saved as PAT_TOKEN. See the Provider Guides for the ready-to-use workflow file.

Requirements

Node.js 20+
Each provider requires its own CLI tool — install only what you need:
- PlantUML: Java 11+ and PlantUML — see PlantUML guide
- Mermaid: see Mermaid guide
- Graphviz: see Graphviz guide
- Draw.io: requires draw.io and xvfb (Linux only) — diagram-sync auto-uses xvfb-run for headless rendering when no display is available — see Draw.io guide
- D2: see D2 guide
- Excalidraw: requires @swiftlysingh/excalidraw-cli — SVG and PNG, no browser required — see Excalidraw guide
- BPMN: requires bpmn-to-image — SVG, PNG and PDF — on CI, patch with --no-sandbox after install (see BPMN guide)

Providers are detected at runtime and missing ones are skipped with a warning.

Common Use Cases

How to automate PlantUML diagram generation in CI/CD
How to automate Mermaid diagram generation in CI/CD
How to automate Graphviz diagram generation in CI/CD
How to convert Draw.io files to images automatically in CI/CD
How to automate D2 diagram generation in CI/CD
How to export Excalidraw files to SVG or PNG automatically in CI/CD
How to automate BPMN process diagram generation in CI/CD
How to keep README architecture diagrams up to date automatically
How to sync architecture diagrams from source files
How to generate architecture diagrams on GitHub Actions
How to treat architecture diagrams as code
Documentation-as-code workflow for PlantUML, Mermaid, D2, and more

Links

npm: https://www.npmjs.com/package/diagram-sync
GitHub: https://github.com/Buffden/diagram-sync
Provider Guides: https://github.com/Buffden/diagram-sync/tree/main/docs/providers

License

MIT — Buffden

Name		Name	Last commit message	Last commit date
Latest commit History 202 Commits
.github		.github
diagrams/docs/providers		diagrams/docs/providers
docs		docs
src		src
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
LICENSE		LICENSE
README.md		README.md
diagram-sync.config.json		diagram-sync.config.json
eslint.config.mjs		eslint.config.mjs
package-lock.json		package-lock.json
package.json		package.json
tsconfig.json		tsconfig.json
vitest.config.ts		vitest.config.ts

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

diagram-sync

The Problem

Install

Quick Start

How It Works

Supported Providers

Usage Options

1. One-off local generation

2. npm script

3. Regenerate specific files only

4. Regenerate only locally changed files

5. Config file

Job Options

6. CI/CD

Requirements

Common Use Cases

Links

License

About

Releases

Packages

Contributors

Languages

Folders and files

Latest commit

History

Repository files navigation

diagram-sync

The Problem

Install

Quick Start

How It Works

Supported Providers

Usage Options

1. One-off local generation

2. npm script

3. Regenerate specific files only

4. Regenerate only locally changed files

5. Config file

Job Options

6. CI/CD

Requirements

Common Use Cases

Links

License

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
