A polished, cross-platform Python + tkinter desktop app that wraps the
nvlts — NVIDIA Local Trusted Store
utility and turns its command-line workflow into a friendly point-and-click experience.
-brightgreen){kind=icon}
-76B900){kind=icon}
Scope note: this project covers only the “(You are here)” path from the upstream guide — local trusted-store credentials via
nvlts. The FastAPI-DLS /gridd-unlock-patcher/ patched-driver route is intentionally out of scope and not implemented here.
nvlts generates a local trusted credential with a valid vGPU license —
no internet connection, no DLS server, no patched DLLs, WHQL signatures intact.
The trade-off is environmental fingerprinting: the credential is bound to the
guest's NIC MAC addresses and machine ID, so NIC changes invalidate it.

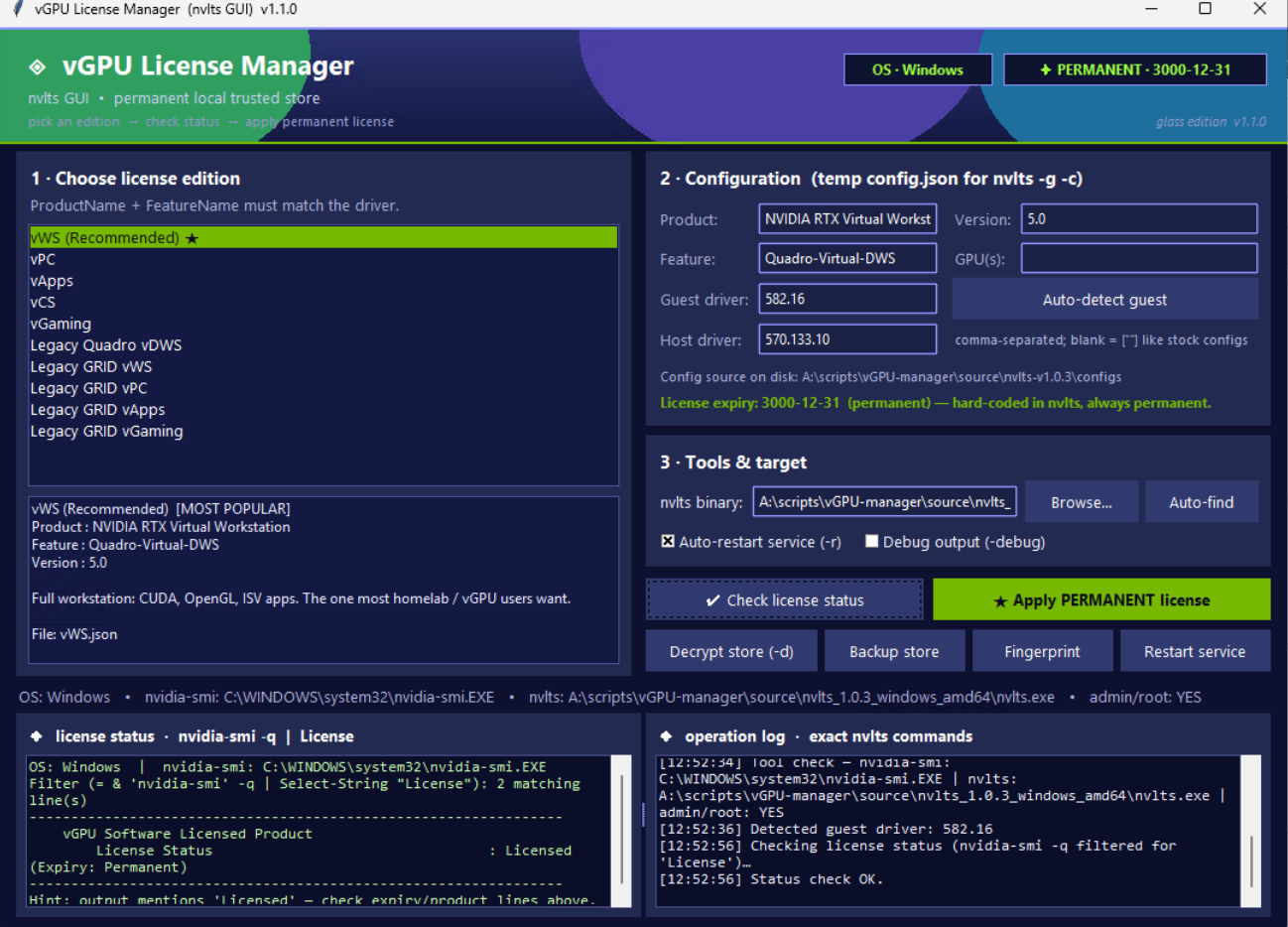

This GUI (vgpu_license_manager.py) sits on top of the nvlts binary and:
- Showcases every license edition with its
ProductName/FeatureName/FeatureVersionso you pick the right one instead of guessing JSON files. - Checks the current vGPU license state via
nvidia-smi -q, using the correct OS-specific invocation automatically. - Issues a permanent license with one click (
nvlts -g -c … [-r]). - Adds safety rails the raw CLI lacks: admin checks, trusted-store directory pre-creation, config validation, backups, decrypt preview, and a live log of every exact command it runs.
| # | Feature | Details |
|---|---|---|
| 1 | 🎴 License showcase | All 10 editions (5 current + 5 legacy) with product, feature, version, description, and a ★ Recommended badge on vWS. Values load from your on-disk configs/*.json when present, otherwise from the embedded catalog. |
| 2 | 🔍 License status check | Runs nvidia-smi -q, filters lines containing License (same as grep / Select-String), and interprets Licensed vs Unlicensed with an expiry hint. |
| 3 | ★ Permanent license | Builds a config from the GUI fields, pre-creates store directories, then runs nvlts -g -c <temp-config> [-r] [-debug]. Expiry is always 3000-12-31 (hard-coded in nvlts). |
| 4 | 🖥️ OS-aware | Auto-detects Windows vs Linux for nvidia-smi paths, trusted-store paths (TrustedStorage / /var/lib/nvidia/vGPULicensing), sidecar files (nvlts.lic, ClientConfigToken), and restart method (NVDisplay.ContainerLocalSystem vs nvidia-gridd). |
| 5 | 🔧 Driver helpers | Auto-detect guest fills GuestDriverVersion from nvidia-smi --query-gpu. Host version stays editable. |
| 6 | 🔓 Decrypt preview | nvlts -d -f <temp> with a 3000-char preview of the (not-strictly-JSON) store content. |
| 7 | 💾 Backup | Timestamped trustedstore_backup_* folder with the encrypted store, tag, nvlts.lic, and client token. |
| 8 | Fingerprint | Hostname, primary MAC, machine ID (registry MachineGuid / product_uuid+machine-id), IPs — plus the NIC-change warning. |
| 9 | 📜 Operation log | Every exact shell command plus stdout/stderr, timestamped. Nothing hidden. |
| 10 | 🪟 Glassmorphism UI | Frosted-glass cards on a deep gradient with ambient glow blobs, pill badges, and a neon-green accent. Still 100% stdlib tkinter. |
Prerequisites
- Python 3.8+ with
tkinter(sudo apt install python3-tkon Debian/Ubuntu if missing; bundled on Windows). - NVIDIA vGPU guest driver installed (
nvidia-smimust exist). - The
nvltsbinary — already bundled undersource/in this repo (source/nvlts_1.0.3_windows_amd64/nvlts.exe, Linux tarball alongside). The app auto-detects it; you can alsoBrowse…to any copy or put one onPATH(/opt/nvlts/nvltsis also checked). - Run elevated: Run as Administrator (Windows) or
sudo(Linux) — writing the trusted store and restarting the display service require it.
Launch
# Windows (elevated PowerShell)
python .\vgpu_license_manager.py# Linux (root for real licensing work)
sudo python3 vgpu_license_manager.pyTypical flow
- Launch elevated → tool auto-finds
nvlts,configs/, andnvidia-smi. ✔ Check license status— confirmUnlicensed(or check expiry).- Pick an edition (most users want vWS), verify driver versions.
★ Apply PERMANENT license(keepAuto-restart service (-r)on).✔ Check license statusagain — expectLicensed (Expiry: Permanent).- Leave your NICs alone afterwards (see warning below).
⚠️ Do NOT change, add, or remove NICs afterwards — not even a VPN TAP adapter. It invalidates the credential and you must re-apply. (Whether WireGuard's WinTUN L3 device affects this is still unknown upstream.)
| Edition (GUI label) | ProductName |
FeatureName |
Ver | File | For |
|---|---|---|---|---|---|
| vWS (Recommended) ★ | NVIDIA RTX Virtual Workstation | Quadro-Virtual-DWS | 5.0 | vWS.json |
Full workstation: CUDA, OpenGL, ISV apps. What most homelab/vGPU users want. |
| vPC | NVIDIA Virtual PC | GRID-Virtual-PC | 2.0 | vPC.json |
Standard virtual desktops. |
| vApps | NVIDIA Virtual Applications | GRID-Virtual-Apps | 3.0 | vApps.json |
App remoting / RDSH session hosts. |
| vCS | NVIDIA Virtual Compute Server | NVIDIA-vComputeServer | 9.0 | vCS.json |
Headless compute (AI/ML, HPC). No graphics. |
| vGaming | NVIDIA vGaming | GRID-vGaming | 8.0 | vGaming.json |
Cloud-gaming profiles. |
| Legacy Quadro vDWS | Quadro Virtual Data Center Workstation | Quadro-Virtual-DWS | 5.0 | Legacy_Quadro_vDWS.json |
Older guest drivers (pre-Ampere era naming). |
| Legacy GRID vWS | GRID Virtual Workstation | GRID-Virtual-WS | 2.0 | Legacy_GRID_vWS.json |
Old GRID drivers. |
| Legacy GRID vPC | GRID Virtual PC | GRID-Virtual-PC | 2.0 | Legacy_GRID_vPC.json |
Old GRID drivers. |
| Legacy GRID vApps | GRID Virtual Applications | GRID-Virtual-Apps | 3.0 | Legacy_GRID_vApps.json |
Old GRID drivers. |
| Legacy GRID vGaming | GRID vGaming | GRID-vGaming | 8.0 | Legacy_GRID_vGaming.json |
Old GRID drivers. |
Only ProductName + FeatureName must match the driver; other fields should
still be filled sensibly (upstream advises against leaving them empty).
The app reproduces the documented manual flow:
nvlts -g -r -c configs/vWS.json # "NVIDIA RTX Virtual Workstation"except it generates the config from the GUI (so driver versions are always fresh) and runs it as:
nvlts -g -c <temp-config.json> [-r] [-debug]What nvlts -g does under the hood (release build, schema_node_locked.go):
- Writes an empty node-locked file —
…/vGPU Licensing/License/nvlts.lic(Win) //etc/nvidia/vGPULicense/nvlts.lic(Linux). - Snapshots the environment (MACs, IPs, hostname, guest/host driver, OS, GPU list, machine ID, hypervisor, CPU sockets/cores).
- Builds the trusted-store lease with
expires = 3000-12-31T23:59:59— hence permanent; there is no expiry option to set. - AES-GCM-encrypts it into the trusted store
(
TrustedStorage/NGUgNGMgNTMgMzEgMmUgMzA+DataStore.bin). - With
-r, restartsNVDisplay.ContainerLocalSystem(Win) /nvidia-gridd(Linux) so the driver picks it up.
The app detects the OS once (platform.system()) and then runs the same
logical pipeline on both:
- Linux:
nvidia-smi -q | grep "License" - Windows:
& 'nvidia-smi' -q | Select-String "License"
Filtering is done in Python (line contains License), so output is identical
in shape on both OSes, with nvidia-smi resolved from PATH plus well-known
locations (C:\Windows\System32\nvidia-smi.exe, /usr/bin/nvidia-smi, …).
vGPU-manager/
├── vgpu_license_manager.py # ← the app (this README's subject)
├── README.md # ← you are here
└── source/
├── nvlts-v1.0.3/ # upstream Go source (reference)
│ ├── configs/ # the 10 edition JSONs
│ ├── main.go / schema*.go / utils_*.go / …
│ └── scripts/install.sh # upstream Linux installer
├── nvlts-v1.0.3.zip # source archive
├── nvlts_1.0.3_windows_amd64/ # Windows release (nvlts.exe)
├── nvlts_1.0.3_windows_amd64.zip
└── nvlts_1.0.3_linux_amd64.tar.gz # Linux release
Audited against nvlts v1.0.3 source; the GUI compensates for each item:
- Release builds are the permanent/node-locked variant.
.goreleaser.ymlbuilds with plaingo build(no-tags net), activatingschema_node_locked.go(//go:build !net). The JWT/2099variant inschema_net.gois not in the releases and the README never mentions tags. generate()forgetsMkdirAll.encrypt()creates the store dir,generate()doesn't — fresh machines fail. The GUI pre-creates it.- Default
-c config.jsonships nowhere. Onlyconfigs/*.jsonexist; an explicit-cis mandatory. The GUI always passes one. -ris OS-specific though documented Windows-only:systemctl restart nvidia-griddon Linux. Handled per-OS.- Expiry is unconditional.
ConfigJSON has no expiry field, so the3000-12-31permanent date always wins. Shown as a badge, not an option. - Fingerprint fragility. MAC list + machine ID (+ IPs/hostname/GPU/CPU). The GUI surfaces the fingerprint and warns before you touch NICs.
| Symptom | Likely cause / fix |
|---|---|
nvlts: NOT FOUND |
Unzip a release under source/ or Browse… to nvlts(.exe); or install to /opt/nvlts/nvlts / PATH. |
nvidia-smi: NOT FOUND |
Guest driver not installed (or not on PATH). Install the vGPU guest driver first. |
| Write/restart failures | Not elevated — relaunch as Administrator / root. |
Licensed but apps still limited |
Wrong edition picked (ProductName/FeatureName mismatch) — try the Legacy variant matching your driver era, or vWS. |
| License dies after network change | Expected: new/removed NIC (incl. VPN TAP) changes the fingerprint → re-apply. |
No lines containing 'License' |
Driver too old or nvidia-smi -q output differs — check full nvidia-smi -q manually. |
Huge thank you to the developer of the upstream project that makes all of this possible:
CoiaPrant (@rbqvq) — author of NVIDIA Local Trusted Store (
nvlts): a local, offline, WHQL-signature-preserving way to license vGPU guests that “just works” where DLS patching used to be mandatory. If this GUI helped you, the credit belongs upstream — consider reporting bugs with your OS version, MAC, driver versions, and GPU model so the tool keeps improving.
- Project: https://git.collinwebdesigns.de/vgpu/nvlts
- Telegram (recommended, EN/简中): @rbqvq
- Email (EN/简中):
coiaprant@gmail.com(if no reply, your mail may have hit Gmail spam — retry from another address)- Discord: vGPU channel
@CoiaPrant(#thDa7CSY) — checked infrequently; prefer Telegram/email.
The upstream README credits the wider vGPU community — those thanks are repeated here because this GUI stands on the same shoulders:
- vgpu-unlock-rs — unlock groundwork the community builds on.
- FastAPI-DLS — the DLS-compatible path this tool deliberately avoids needing.
- gridd-unlock-patcher — NLS root-CA replacement approach.
- patched-nvidia-grid-drivers — certificate-check-skipped drivers.
- Foxi Net Disk — driver mirror referenced upstream.
- The vGPU community testers and bug reporters — fingerprint quirks (NIC/MAC/machine-id behavior) were characterized by real users.
Guides and unlock projects linked from the upstream README, worth knowing even though this tool doesn't use them:
- NVIDIA vGPU Guide (Proxmox) — host-driver install walkthrough.
- vgpu_unlock — consumer-GPU vGPU unlock.
- vGPU_Unlock Wiki — community guide for
vgpu_unlock. - Proxmox 8 vGPU in VMs and LXC — merged-driver setup.
- Proxmox All-In-One Installer (
proxmox-installer.sh).
- For lab / educational use; respect NVIDIA's licensing terms for your
deployment. This GUI only drives the upstream
nvltsbinary — it performs no cracking, patching, or signature modification itself. - Not affiliated with NVIDIA Corporation, CoiaPrant, or any linked project.
- The
nvltsbinary/source undersource/remain under their upstream LICENSE; this wrapper script is provided as-is, without warranty.
