[Bug]: Android: initial camera from Camera defaultSettings lands at latitude 0 on a cold style cache

[krisgerhard]

Follow-up to #3818 as requested there. #3818 is closed by #4040, but a related failure is still present on 10.3.5: the initial camera keeps the longitude and ends up at latitude 0 whenever the Mapbox style cache is cold.

Reproducer, evidence and the patch I am running: https://github.com/krisgerhard/rnmapbox-bounds-initial-camera-repro

Mapbox Version

11.24.2

React Native Version

0.86.2

Platform

Android

@rnmapbox/maps version

10.3.5

Standalone component to reproduce

BugReportExample.js

import React, { useRef, useState } from 'react';
import { StyleSheet, Text, View } from 'react-native';
import { Camera, MapView } from '@rnmapbox/maps';

const BOUNDS = { ne: [137.9, 35.6], sw: [136.8, 34.8] };
const EXPECTED = [
  (BOUNDS.ne[0] + BOUNDS.sw[0]) / 2,
  (BOUNDS.ne[1] + BOUNDS.sw[1]) / 2,
];

export default function BugReportExample() {
  const mountedAt = useRef(Date.now());
  const [center, setCenter] = useState(null);
  const [log, setLog] = useState([]);

  const push = (label) => {
    const entry = `+${Date.now() - mountedAt.current}ms ${label}`;
    console.log(`[repro] ${entry}`);
    setLog((prev) => (prev.length >= 8 ? prev : [...prev, entry]));
  };

  const failed =
    center !== null &&
    (Math.abs(center[0] - EXPECTED[0]) > 0.5 || Math.abs(center[1] - EXPECTED[1]) > 0.5);

  return (
    <View style={styles.root}>
      <MapView
        style={styles.map}
        onDidFinishLoadingStyle={() => push('onDidFinishLoadingStyle')}
        onDidFinishLoadingMap={() => push('onDidFinishLoadingMap')}
        onMapIdle={(state) => {
          setCenter(state.properties.center);
          push(
            `onMapIdle center=[${state.properties.center
              .map((n) => n.toFixed(3))
              .join(', ')}]`,
          );
        }}
      >
        <Camera defaultSettings={{ bounds: BOUNDS }} />
      </MapView>

      <View style={styles.overlay}>
        <Text style={styles.line}>
          expected center [{EXPECTED.map((n) => n.toFixed(3)).join(', ')}]
        </Text>
        <Text style={styles.line}>
          actual center{' '}
          {center === null ? '—' : `[${center.map((n) => n.toFixed(3)).join(', ')}]`}
        </Text>
        {center !== null && (
          <Text style={failed ? styles.fail : styles.pass}>{failed ? 'FAIL' : 'PASS'}</Text>
        )}
        {log.map((line, i) => (
          <Text key={i} style={styles.logLine}>
            {line}
          </Text>
        ))}
      </View>
    </View>
  );
}

const styles = StyleSheet.create({
  root: { flex: 1 },
  map: { flex: 1 },
  overlay: {
    position: 'absolute',
    top: 12,
    left: 12,
    right: 12,
    padding: 12,
    borderRadius: 8,
    backgroundColor: 'rgba(0, 0, 0, 0.78)',
  },
  line: { color: '#ddd', fontSize: 12 },
  pass: { color: '#5cff9d', fontWeight: '700', marginVertical: 4 },
  fail: { color: '#ff6b6b', fontWeight: '700', marginVertical: 4 },
  logLine: { color: '#bbb', fontSize: 11 },
});

Observed behavior and steps to reproduce

The camera lands at [137.350, 0.000] instead of [137.350, 35.200] — right longitude, latitude exactly 0, so the map opens on the ocean.

1. Install the app fresh (adb uninstall <pkg> first — this is what clears the Mapbox style cache).
2. Launch it. The Camera has no props other than defaultSettings, so after stop & defaultStop race stop #4040 no empty stop is sent (nativeStop === null).
3. Read the center from onMapIdle / the overlay.

Only the first launch after an install is wrong; every later launch of the same install is correct, which is why this looks flaky in the wild.

build	defaultSettings	fresh installs	landed at latitude 0
10.3.5	{ bounds }	4	4
10.3.5 + patch below	{ bounds }	4	0
10.3.5	{ centerCoordinate, zoomLevel }	8	6
10.3.5 + patch below	{ centerCoordinate, zoomLevel }	4	0
10.3.5, warm relaunch (no reinstall)	{ bounds }	1	0

So bounds fails every time and centerCoordinate fails most of the time — #4213 (onCameraChanged firing [0, 0] / [lng, 0] on launch) looks like the same root cause seen through the event stream.

Reproduced on a physical OnePlus NE2213 (Android 16, API 36) and on the Medium_Phone_API_36.0 AVD, both New Architecture, debug builds.

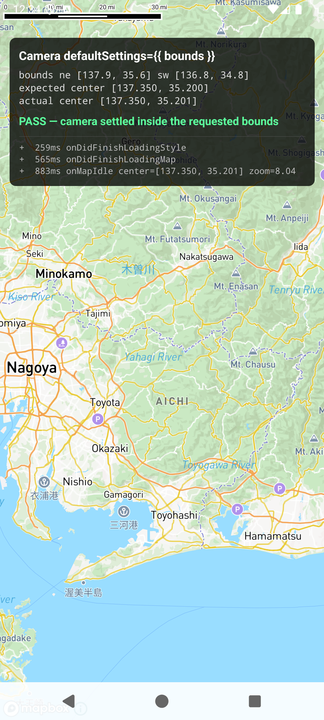

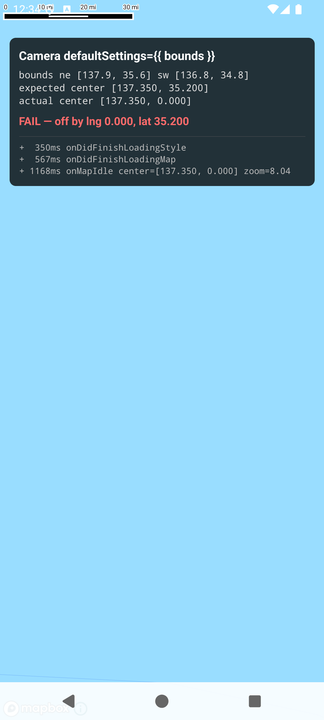

Unpatched (emulator, fresh install) vs. patched:

I ReactNativeJS: [repro +681ms] onDidFinishLoadingStyle
I ReactNativeJS: [repro +730ms] onDidFinishLoadingMap
I ReactNativeJS: [repro +1018ms] onMapIdle center=[137.350, 0.000] zoom=7.85

Expected behavior

<Camera defaultSettings={{ bounds }} /> should put the initial camera inside the requested bounds on the first launch too, as it does on every subsequent launch.

Notes / preliminary analysis

RNMBXCamera declares requiresStyleLoad = false, so RNMBXMapView.addFeature adds it immediately and addToMap() → setInitialCamera() runs before the style is loaded. setInitialCamera applies the stop through a zero-duration flyTo (CameraUpdateItem.run()); applied that early the latitude does not stick while the longitude does. This matches @Elter71's observation in #3818 that "during the first flyTo method call, Mapbox doesn't center the map on the latitude".

Instrumenting RNMBXCamera in our production app (with Log.e — Logger.w is level-gated below WARN and silently dropped the output) showed:

• the map view is already fully laid out (1080×2412) — not a layout-size race;
• CameraStop.cameraForCoordinateBounds(...) returns the correct camera (center = 35.205, 137.357, zoom = 8.87);
• setInitialCamera runs ~270 ms before onDidFinishLoadingMap on a cold start; on a warm start the cached style is loaded before the camera is added, which is exactly the difference between a failing and a passing launch.

Deferring the default stop until the style is loaded fixes it in all configurations I measured. getStyle invokes the callback immediately when the style is already loaded, so the warm path is unchanged and only the cold-start initial camera is delayed by one style load (~150–200 ms):

     private fun setInitialCamera(mapView: RNMBXMapView) {
-        mDefaultStop?.let {
-            val map = mapView.getMapboxMap()
-
-            it.setDuration(0)
-            it.setMode(CameraMode.NONE)
-            val item = it.toCameraUpdate(mapView)
-            item.run()
-        }
+        val defaultStop = mDefaultStop ?: return
+        mapView.getMapboxMap().getStyle(object : Style.OnStyleLoaded {
+            override fun onStyleLoaded(style: Style) {
+                defaultStop.setDuration(0)
+                defaultStop.setMode(CameraMode.NONE)
+                defaultStop.toCameraUpdate(mapView).run()
+            }
+        })
     }

We have been running this patch in production for a while with no side effects. I don't know whether the deferral or requiresStyleLoad = true is the direction you'd prefer (the latter looked riskier to me).

Additional links and references

• Reproducer with results, screenshots and the patch: https://github.com/krisgerhard/rnmapbox-bounds-initial-camera-repro
• [Bug]: defaultSettings centerCoordinates not applying #3818 — original report, closed by stop & defaultStop race stop #4040 (which fixed the empty-stop-clobbers-defaultStop part)
• [Bug]: Setting 'defaultSettings' on '<Mapbox.Camera />' showing the wrong location on very first render of the app #3449 — duplicate of [Bug]: defaultSettings centerCoordinates not applying #3818
• [Bug]: Android: onCameraChanged fires with [0,0] on launch #4213 — onCameraChanged firing [0, 0] on launch, likely the same root cause
